CNC-6034 High Precision 5 Axis Double Column Machining Center High Speed High Rigidity

PRODUCT DESCRIPTION

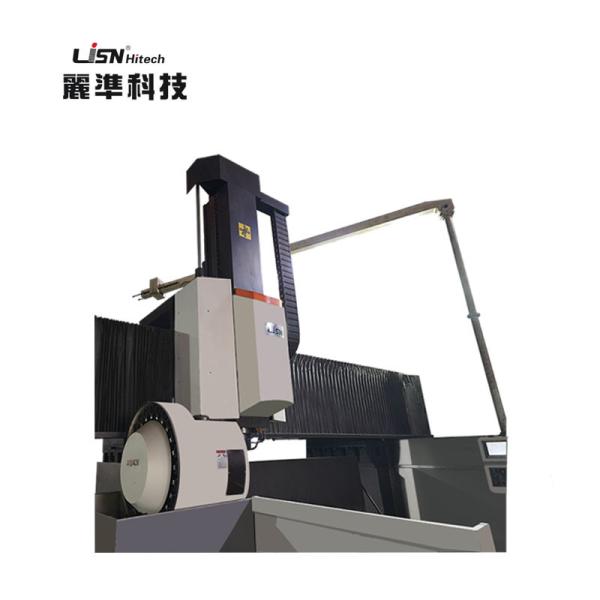

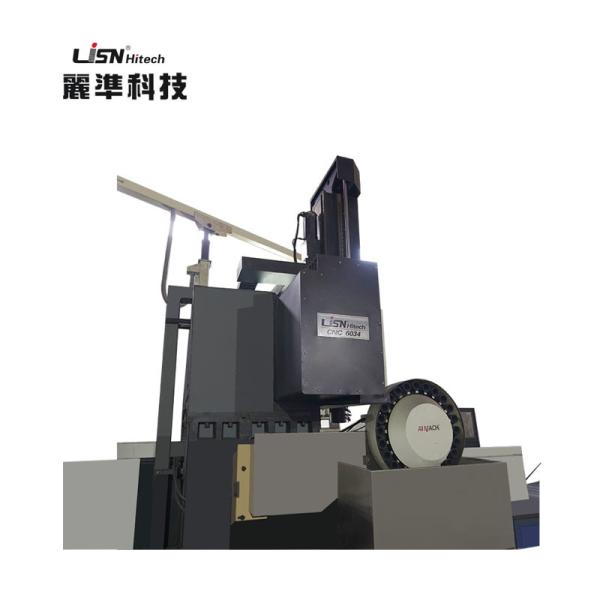

The CNC-6034 is a 5 axis double column mahining center. It has the characteristics of high speed, high performance and high precision, and excellent stability. The body of the machine is made of high hardness and high rigidity materials which provies the machine extremely stability. The machine use the heavy box structure, all castings are made of excellent cast iron, and the ribs inside the fuselage have been strengthened to provide excellent rigidity for the whole machine.

This machine is also equioed a high rigidity, high precision and high speed spindle. The speed range of the spindle is 4000RPM. This spindle performance is excellent, not only can achieve high speed precision cutting, but also can achieve low speed heavy cutting. The travle distances of the X, Y and Z axis are 6200/4000/1250. The machine is widely used in aerospace, shipbuilding, energy, rail transit, construction machinery, automobile, mold and other industries.

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
