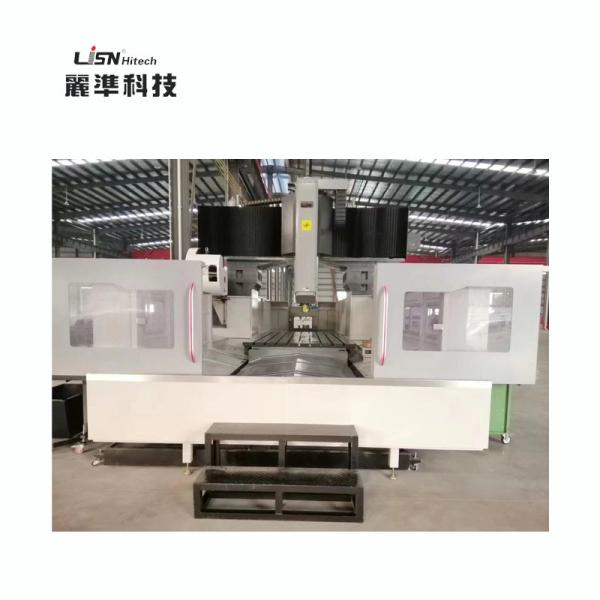

GL-4022 Double Column Machining Center High Precision and Rigidity

Product Description

The GL-4022 is a high performance double column machining center which has high precision and rigidity characteristics. Large castings such as worktable, bed, column, beam and ram are made of cast iron or welded parts, and the inner cavity of the casting is honeycomb type composite arrangement structure with advanced design. All the castings have been aging and secondary tempering treatment to eliminate residual internal stress and make the material stable, ensuring the stability of workpiece processing accuracy and machine life.

Main Features:

• Strong and stable fuselage
• High rigidity castings to provide high rigidity to overall machine
• High speed and precision spindle
• Speed of the spindle is up to 6000RPM
• The materials of the spindle can absorbs vibration which can provide high stability and maintain high accuracy during machining
• The worktable size of the machine is 4000mm*2000mm
• X/Y/Z travel distance are 4000mm/2200mm/800mm

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
