Multipurpose Double Column Vertical Machining Center Stable GL 4025 45KVA
Multipurpose Double Column Vertical Machining Center Stable GL 4025 45KVA
Specifications
Brand Name :
Li Zhun
Model Number :
GL-4025
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Product Name :
Double Column Machining Center GL-4025
Condition :
New
Warranty :
1 Year
Type :
Double Column/Gantry
Power Demand :
45KVA
Description

High precision Double Column Machining Center GL-4025 High Rigidity

The GL-4025 is one of the double column machining center which has excellent performance. The overall performance of the machine is excellent which with high rigidity and precision, the stability of this machine is also excellent. The body of the machine is made of high quality, high hardness castings and has been tempered to provide the machine lasting strong rigidity and stability.

The machine is equipped with high speed precision spindle, the top speed of spindle can reach 6000RPM. The machine is equipped with high speed precision spindle, the top speed of spindle can reach 6000RPM. The rigidity and stability of the spindle are excellent. The spindle material can absorb vibration, can effectively maintain tool stability so as to avoid the precision problem caused by tool vibration in the process of machining.

The machine is equipped with cash Mitsubishi CNC system M80 and servo drive, to ensure that the control system has the advantages of high stability and high precision.

Main Technical Parameters

ITEM MODELS GL4025
WORKTABLE (WIDTH*LENGTH) mm 4000*2400
MAX LOAD BEARING OF WORKTABLE t 18
X/Y/Z AXIS TRAVEL mm 3000/2600/800
DISTANCE FROM SPINDLE NOTOWORKBENCH mm 240-1040
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 6000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
DISTANCE BETWEEN TOW COLUMNS mm 2700
X/Y/Z RAPID FEED SPEED m/min 12/12/15
MAX CUTTING FEED SPEED m/min 10-7000
X/Y/Z POSITION ACCURACY mm ±0.015/300
X/Y/Z RE-POSITION ACCURACY mm ±0.01
MACHINE DIMENSION mm 11000*4100*3950
MACHINE WEIGHT T 40
POWER DEMAND KVA 45
AIR PRESSURE m ³mim 7

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

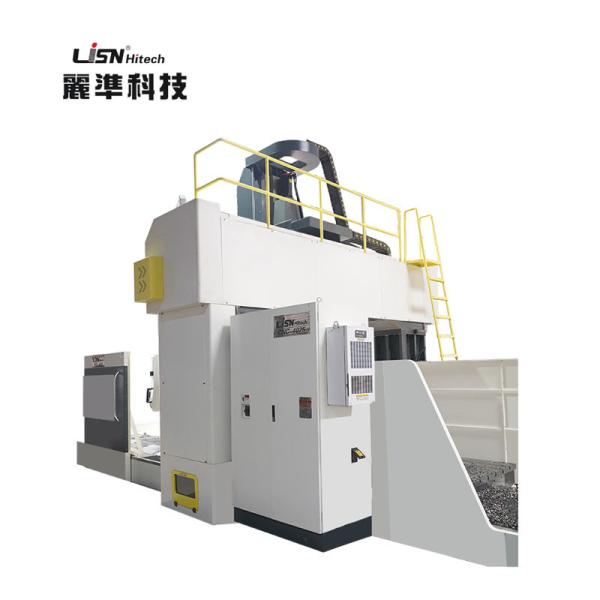

Multipurpose Double Column Vertical Machining Center Stable GL 4025 45KVA

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
