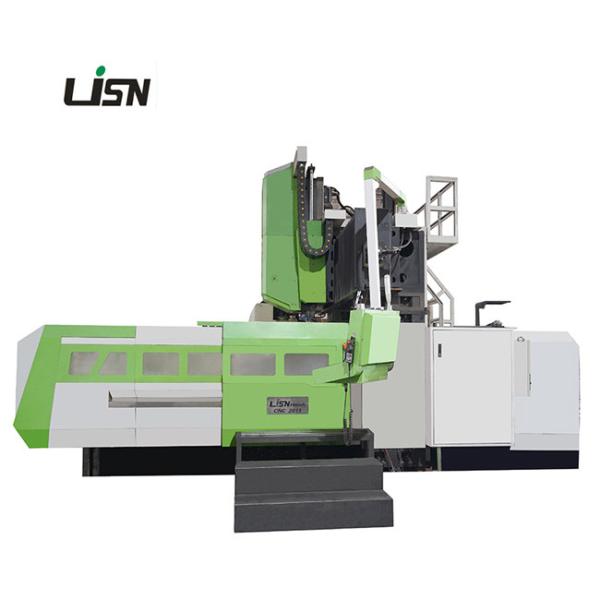

Anti Shaking Metal Gantry Type Machining Center , 35KVA Small CNC Machining Center
Anti Shaking Metal Gantry Type Machining Center , 35KVA Small CNC Machining Center
Anti Shaking Metal Gantry Type Machining Center , 35KVA Small CNC Machining Center
Anti Shaking Metal Gantry Type Machining Center , 35KVA Small CNC Machining Center
Specifications
Brand Name :
Li Zhun
Model Number :
DY2013
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,
Delivery Time :
15 work days
Packaging Details :
Wooden box
Certification :
SGS
Material :
Metal
Voltage :
35KVA
Spindle speed :
6000Rpm
Precision :
±0.01
Condition :
New
Warranty :
1Year
Controlling mode :
Cnc Control,Automatic
Product name :
Gantry machining
Description

High Speed Precision Metal Metal Small CNC Gantry Machining Center DY2013

1. DY2013 series CNC gantry moving beam milling machine is a new generation of precision CNC machining machine tools, suitable for high speed steel carbide tool on ferrous metal, non-ferrous metal and part of the non-metallic material processing of the workpiece. Can complete the plane, high and low surface, inclined surface, side, groove class, boring, drilling and other processes of the milling process.

2. Transmission mode of worktable: workbench ball screw drive, driven by AC servo system to achieve stepless adjustment of working speed and positioning, and repeat positioning accuracy.

Main Technical Parameters

ITEM MODELS DY2013 DY2513

WORKTABLE (WIDTH*LENGTH) 		mm 2200*1100 2700*1100

MAX LOAD BEARING OF WORKTABLE		 kg 6 8

X/Y/Z AXIS TRAVEL		 mm 2000/1300/800 2500/1300/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 150-950 150-950

SPINDLE HOLE TAPER		 BT50 BT50

SPINDLE SPEED RANGE		 r/min 6000 6000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT		 BELT BELT

DISTANCE BETWEEN TOW COLUMNS		 mm 1300 1300

X/Y/Z RAPID FEED SPEED		 m/min 12/12/10 12/12/10

MAX CUTTING FEED SPEED		 m/min 10-7000 10-7000

X/Y/Z POSITION ACCURACY		 mm ±0.015/300 ±0.015/300

X/Y/Z RE-POSITION ACCURACY		 mm ±0.01 ±0.01

MACHINE DIMENSION		 mm 6110*4282*4565 7100*4282*4565

MACHINE WEIGHT		 T 21 23
POWER DEMAND KVA 35 35

Product details

Anti Shaking Metal Gantry Type Machining Center , 35KVA Small CNC Machining Center

The standard configuration

1. Japan FANUC 0IMF system
2. Direct type spindle 12000 rpm
3. Spindle oil cooler
4. Flush chip removal
5. Automatic lubrication system
6. Foundation screws and spacers
7. Toolbox
8. Working light (explosion proof light)
9. Warning light
10. Spindle blowing device
11. Fully enclosed cover
12. Automatic power off system
13. Cooling water system
14. Air Gun
15. Rigid tapping function
16. Electric box heat exchanger
