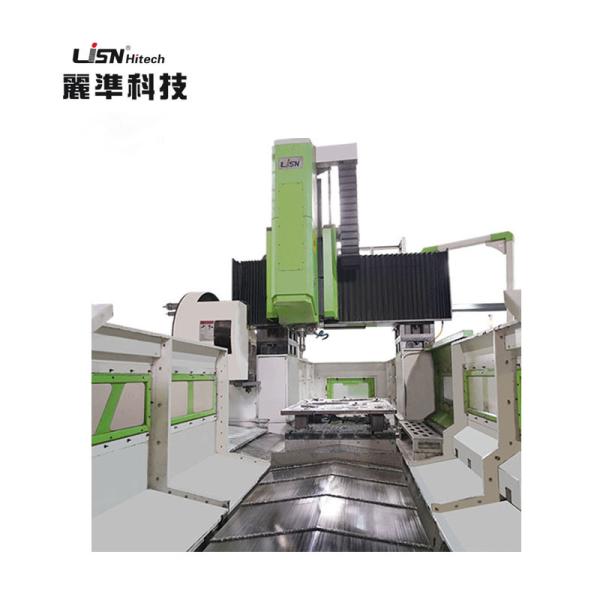

CNC-6034 High Precision 4 Axis Double Column Machining Center High Speed High Rigidity

PRODUCT DESCRIPTION

The 4 axis version double column gantry machining center CNC-6034 is a heavy processing machine which features in high speed, high precision and high rigidity. The worktable of this machine is not only large in size but also very good in bearing capacity. The size of the worktable is 6000mm*2600mm and the maximum load bearing capability is up to 28t. Excellent load-bearing capacity and worktable size is very suitable for heavy additional processing. The body of the machine is made of high hardness and rigidity material and has been tempered to ensure that the rigidity and stability of the body are maintained in the best condition. The axis travle distance of X, Y and Z are 6200mm, 4000mm and 1250mm.

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
