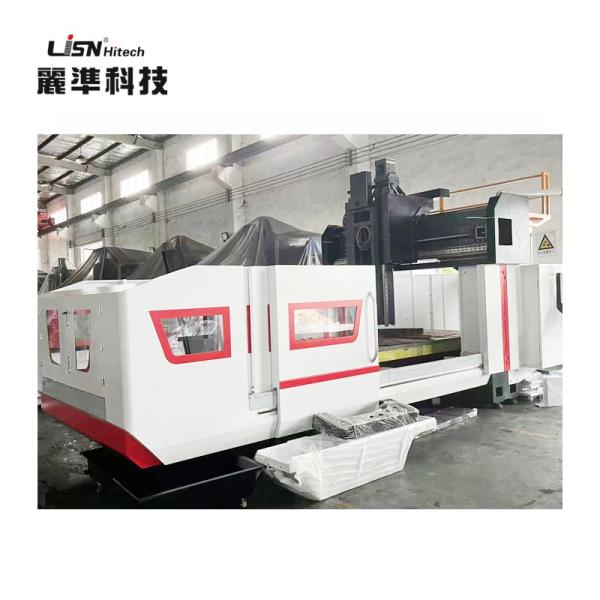

High Rigidity 5 Axis Double Column Machining Center High Precision LS 2317

Product Description

The 5 axis double column machining center is a high performace CNC machining center with high rigidity and precision characteristics. The gate bridge and the base of this machine adopts integrated structural design to strengthen the structure strength and provide excellent stability for the machine. All structural castings are also analyzed by FEM finite element, which has the advantages of lightweight structure. The worktable size of this machine is 2300mm*1500mm, it uses double - layer reinforced ribs hollow damping structure, which has high stability. The maximum load capability of this machine is up to 8T. Excellent worktable size, excellent load capacity, excellent body strength and reasonable body structure make this machine as the first choice for heavy cutting and complex parts machining.

Main Features

• Integrated structural design
• High speed spindle: 6000RPM
• High rigidity for overall machine
• 5 Axis
• Worktable size: 2300mm*1500mm
• X / Y / Z axis travel distance: 2300mm / 1700mm / 800mm
• Maximum cutting feed speed: 10 - 7000 RPM

Main Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
