High Speed 4 Axis Double Column Machining Center High Precision DY3015

Product Description

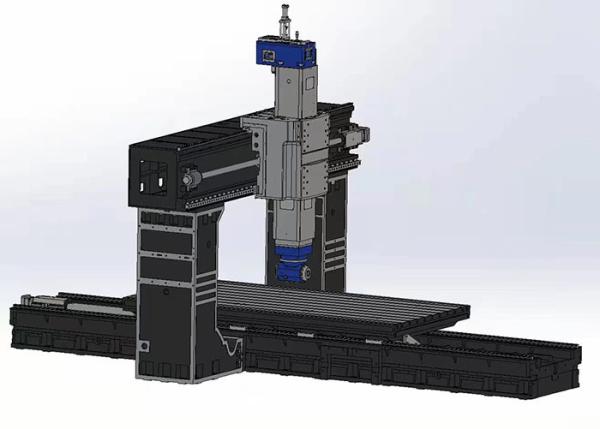

The 4 axis version of DY-3015 is a gantry double column machining center which has high precision and high rigidity characteristics. The overall rigidity of the mahcine is very excellent which can provide the machine with a very high stability and ensure that there will be no deformation in the process of processing or other problems to ensure the stability and quality of processing. This machine is also equiped a good performance spindle which can provide high speed and high accuracy for the machining. The speed range of the spindle is 6000RPM and the maximum cutting feed speed is up to 7000RPM which can provide excellent performance for machining. The rigidity of the spindle is also excellent. The material of spindle can absorb the vibration generated during machining to ensure the machining accuracy.

Main Features

• High speed and accuracy spindle
• Overall rigidity of the machine is excellent
• Excellent Stability
• Excellent accuracy
• X/Y/Z axis travel distances: 3000mm / 1500mm / 900mm
• Distance between tow: 1500mm
• Maximum cutting feed speed: 10 - 7000 RPM

Main Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

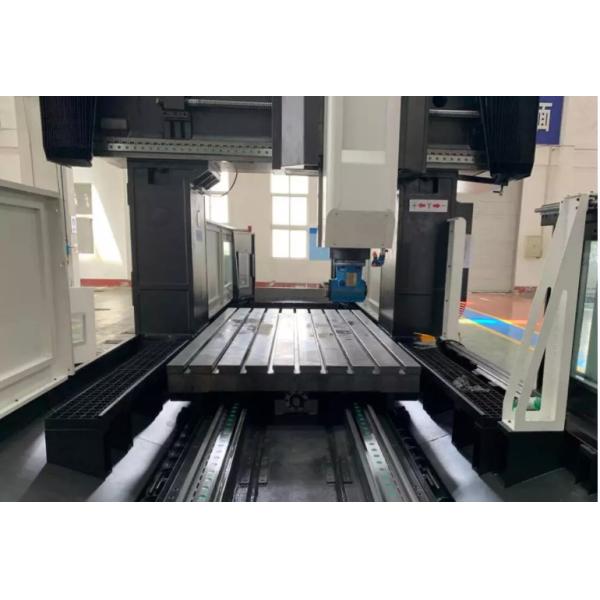

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
