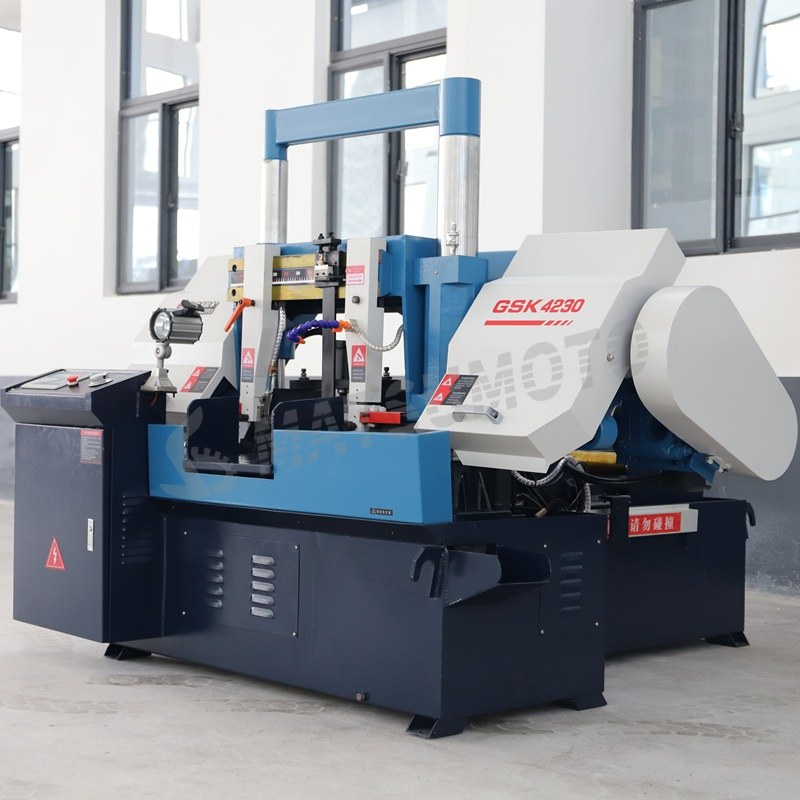

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
Specifications
Brand Name :
Matsumoto
Model Number :
GSK4230
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$4500-5000
Delivery Time :
15 working days
Packaging Details :
plywood case
Cutting range :
300*300mm
Saw band specification :
3800*27*0.9mm
Wire speed of saw band(3 steps) :
27/45/69m/min
Single feeding length :
500mm
Single feeding accuracy :
0.1mm
Dimension(L*W*H) :
2300*2000*1550mm
Description

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine


Description

CNC Band Sawing Machine is an automatic, precision cutting equipment controlled by computer numerical control (CNC) system. It integrates mechanical structure, servo drive, digital control and intelligent operation, enabling stable and high-precision cutting of various metal workpieces. Equipped with automatic feeding, positioning and cutting functions, it supports programmable parameter setting to realize efficient, unmanned and standardized sawing operations for bars, pipes, profiles and other materials.

Application

  • Cutting carbon steel, stainless steel, alloy steel, copper, aluminum and other metal bars, pipes and profiles Metal processing, machinery manufacturing, auto parts, hardware tools, mold manufacturing
  • Steel service centers, metal material distributors, cutting workshops Mass production lines requiring fixed-length, high-efficiency and high-precision sawing

PROJECT

UNIT

GSK4230

Cutting range

mm

300*300

Saw band specification

mm

3800*27*0.9

Wire speed of saw band(3 steps)

m/min

27/45/69

Single feeding length

mm

500

Single feeding accuracy

mm

0.1

Saw band tension type

/

Manual/Hydraulic

Hydraulic motor power

kw

0.75

Saw band main motor

kw

3.0

Cooling pump power

kw

0.12

Main drive mode

/

Hydraulic+Grating ruler

Dimension(L*W*H)

mm

2300*2000*1550


  • Details Images

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine

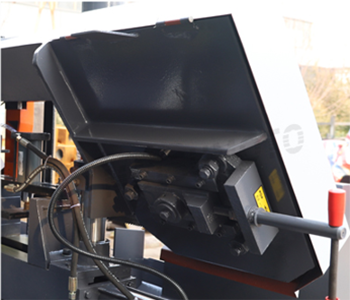

TENSION ADJUSTMENT


The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine




CLAMPING METHOD


Hydraulic clamping, jaws made of high-density ductile iron, clamping firmly.

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine

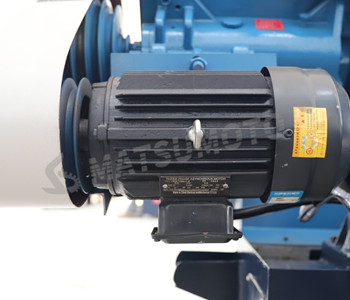

REDUCER


Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine

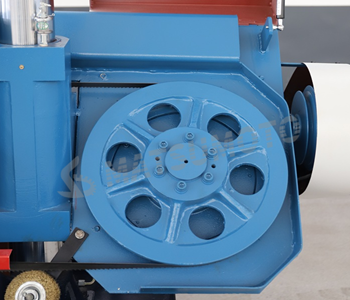

LARGE ROULETTE


Enlarging the roulette, improving the stability and reducing the wear of the saw blade.

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine

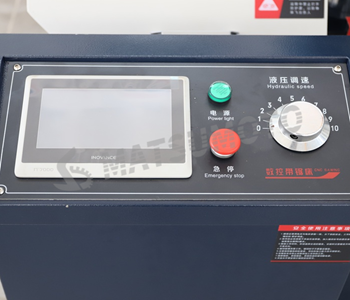

PLC CONTROL


PLC controller for automatic cutting.

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine

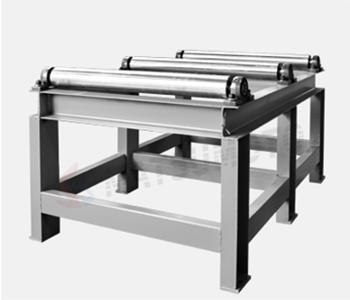

FEEDING RACK(OPTIONAL)


One-button key control automatic feeding, saving labor and improving efficiency.

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
