Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
Specifications
Brand Name :
Matsumoto
Model Number :
GT4240
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$4000-5000
Delivery Time :
7 working days
Packaging Details :
plywood case
Saw blade speed :
19-86m/min
Hydraulic system pressure :
3.2MPa
Working table height :
575mm
NW/GW :
1410/1800kg
Description

GT4240 Metal Cutting Machine Double Column Band Saw Machine

Characteristics:
1. Button type control panel, sawing mode change flexible, manual and automatic combination.
2. PLC controller, complete automatic sawing process, feeding length 0-500 mm.
3. Double upright column structure, vertical lift, high stability.
4. Cutting speed hydraulic control, stepless regulation speed.
5. Stable performance, high efficiency, suitable for bulk material sawing.

Main technical parameters GT4240/GHS4240
Swing range Round steel Φ400mm
Square material 400*400mm
Belt saw blade size 32*1.1*4590mm
Saw blade speed 19-86m/min
Motor power Main motor 3kw
Oil pump motor 1.5kw
Cooling pump motor 0.09kw
Hydraulic system pressure 3.2MPa
Working table height 575mm
Swing machine external form size 2264*1304*1862mm
Package size 2678*1780*2150mm
NW/GW 1410/1800kg

Standard equipment:

Optional equipment:

Hydraulic workpiece clamping

1 saw blade belt

Material support stand

Coolant system

Work lamp

Operator manual

Automatic blade breakage control

Fast drop protection device

Hydraulic blade tension

Automatic chip removal device

Various blade linear speed

Blade protection covers

Wheel cover opening protection

CE standard electrical equipment

Usage:

Cutting various metal materials such as steel, aluminum, copper, and alloy bars, pipes, profiles, and solid blocks.

  • Straight cutting, angle cutting, and contour cutting in metalworking, manufacturing, maintenance workshops, and construction sites.
  • Mass production cutting, blanking, and material preparation in fabrication shops, automotive, and machinery industries.
  • Cutting wood, plastic, and other non-metallic materials in appropriate models.

  • Details Images:

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min

TENSIOM ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min

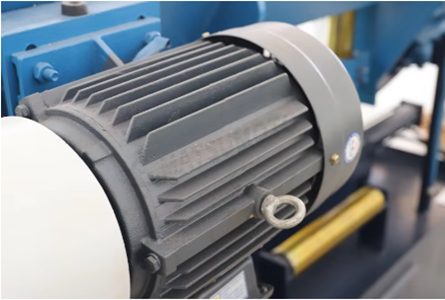

REDUCER

Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min

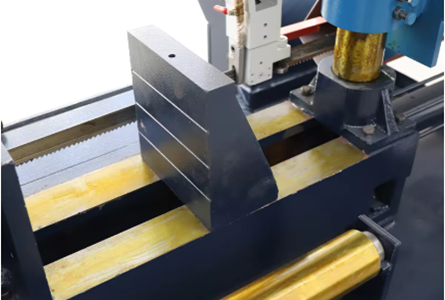

CLAMPING METHOD

The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm.

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min

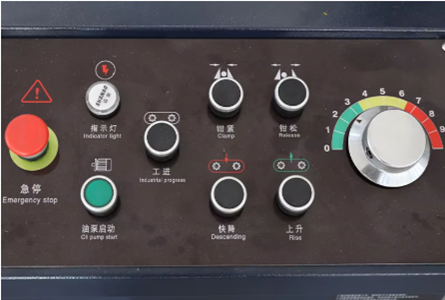

DETAL PLC OPERATION

Easy to operate, improve processing efficiency and reduce misoperation.

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
