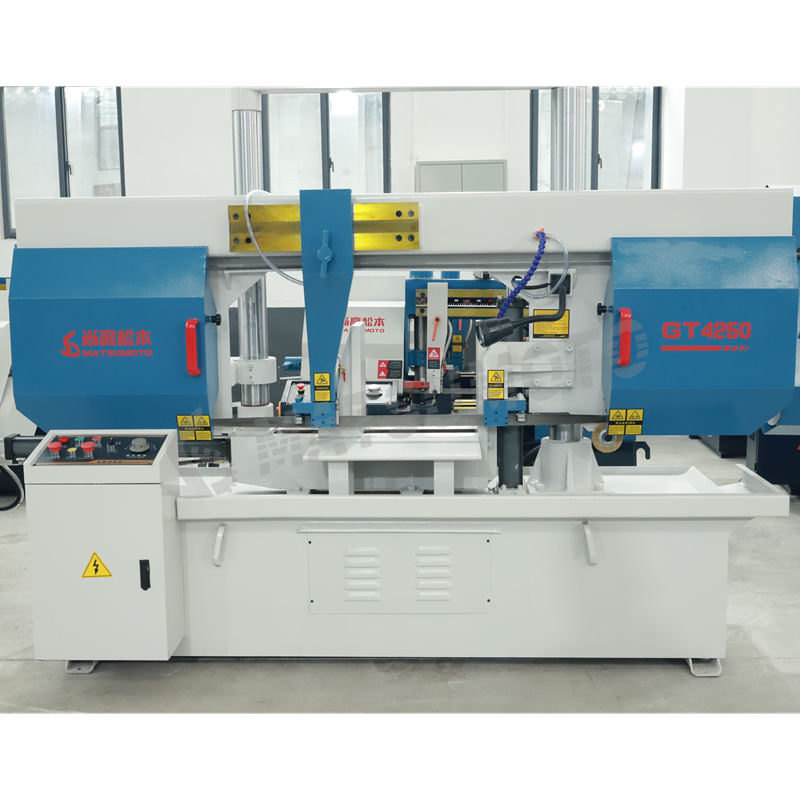

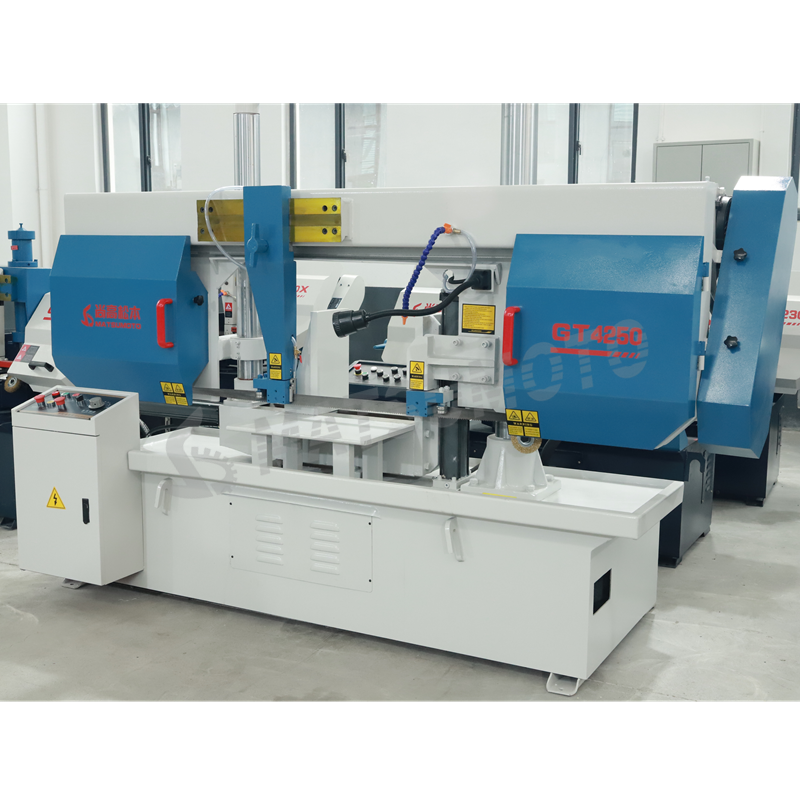

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
Specifications
Brand Name :
Matsumoto
Model Number :
GT4250
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$3500-4500
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Cutting range :
500-500*500mm
Saw blade size :
5800*41*1.3mm
Blade speed :
27,45,69m/min
Clamping type :
Hydraulic pressure
Main motor power :
5.5kw
Hydraulic motor power :
0.75kw
Description

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine

  • Main features:

1. Double column structure, vertical lifting, high stability.

2. High efficiency, high precision save material saving energy.

3. The hydraulic pressure controls the speed of saw stepless speed regulation.

4. The camp of workpieces and hydraulic, control easily.

5. Can made 3 hydraulic tension saw blades per request.

  • Application:

Automatic Metal Cutting Band Saw Machines GT4228 GT4235 GT4240 GT4250,for high precision metal cutting, the ideal equipment for the industrial and mining enterprises and small workshops, wide range of uses.

Project

Unit

GT4250

Cutting range

mm

500-500*500

Saw blade size

mm

5800*41*1.3

Blade speed

m/min

27,45,69

Clamping type

/

Hydraulic pressure

Main motor power

kw

5.5

Hydraulic motor power

kw

0.75

Coolant pump motor power

kw

0.125

Overall dimension

mm

2800*1300*2000

Standard equipment

Optional equipment

Saw blade belt

Hydraulic workpiece clamping

Bundle vise

Material support stand

Coolant system

Work lamp

Operation manual

Automatic blade breakage control

Fast drop protection devise

Hydraulic blade tension

Automatic chip removal device

Various blade linear speed

Blade protection convers

Wheel cover opening protection

CE standard electrical equipment

  • Details Images:

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure

TENSION ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure

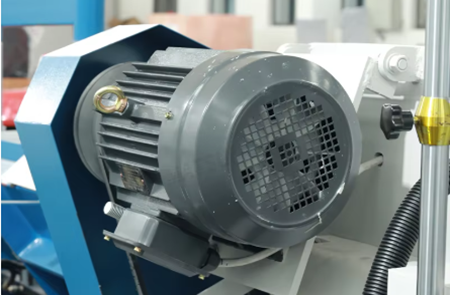

REDUCER

Smooth operation, no noise, speed reduction and increase torque,bid farewell to the stuffy car and the saw.

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure

CLAMPING METHOD

The power is hydraulic,which is more stable, and the jaws are made of high-density ductile iron, which is firm.

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure

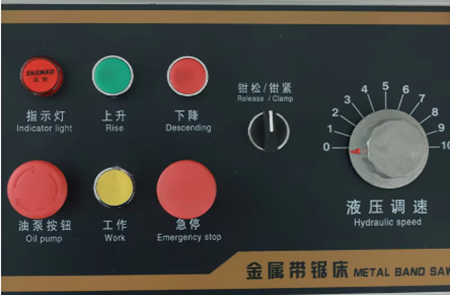

DELTA PLC OPERATION

Easy to operate,improve processing efficiency and reduce misoperation.

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure

GT4250 Gantry Type Bandsaw Machine Metal Sawing Machine Double Column Structure
