GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
Specifications
Brand Name :
Matsumoto
Model Number :
GT42120
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$14500-15500
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Max. cutting range :
1200*1400mm
Saw cutting speed :
17-60m/min
Cooling motor power :
90w
Main motor power :
15kw
Machine weight :
12200kg
Machine size :
4600*1850*3000mm
Description

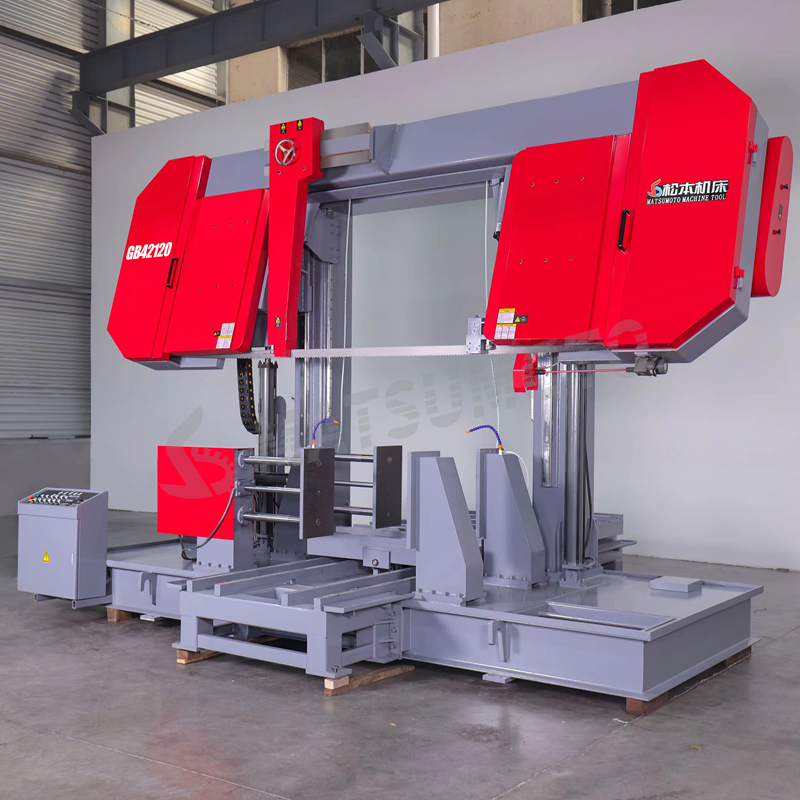

GT42120 Gantry Band Sawing Machine Double Column Metal Band Sawing Machine

  • Application:

The GT42120 metal band saw is one of our scientifically designed series of products that combines the advantages of similar products at home and abroad. It has the characteristics of reasonable structure, stable performance, and simple and reliable operation.

Project

GT42120

Max. cutting range

1200*1400mm

Saw cutting speed

17-60(frequency conversion)m/min

Cooling motor power

90w

Band saw blade specification

67*1.6*11880mm

Main motor power

15.0kw

Hydraulic motor power

3.75kw

Machine size

4600*1850*3000mm

Machine weight

12200kg

  • Features:

1. Adopting a square column gantry structure, the structure of the square column is equipped with linear guide rails.This structure has good guiding performance, uniform force distribution, high motion accuracy, good wear resistance, and long service life.

2. Two sets of pliers are used for hydraulic clamping.

3. The cutting speed is controlled by hydraulic pressure, ensuring stable sawing and high precision.

4. The saw blade line speed adopts variable frequency stepless speed regulation.

5. The saw blade is tensioned using hydraulic tensioning.

6. The workbench adopts a roller type, which can facilitate the forward and backward movement of the workpiece and is suitable for sawing various materials.

  • Details Images:

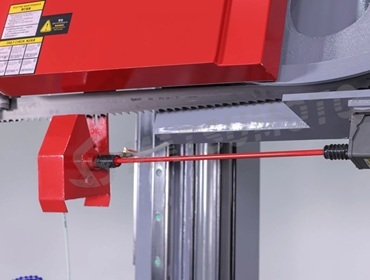

  • TENSION ADJUSTMENT

    The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

  • GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw

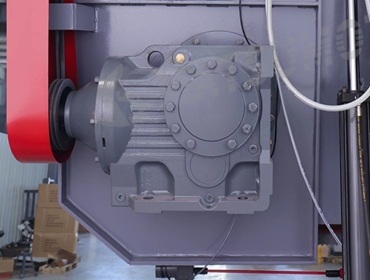

REDUCER

Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw

CLAMPING METHOD

The power is hydraulic,which is more stable, and the jaws are made of high-density ductile iron,which is firm.

GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw

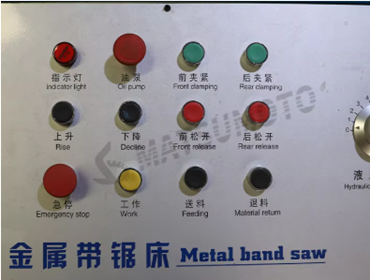

BUTTON+KNOB

Easy to operate, improve processing efficiency and reduce misoperation.

GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw

GT42120 Gantry Band Sawing Machine Double Column Metal Cutting Band Saw
