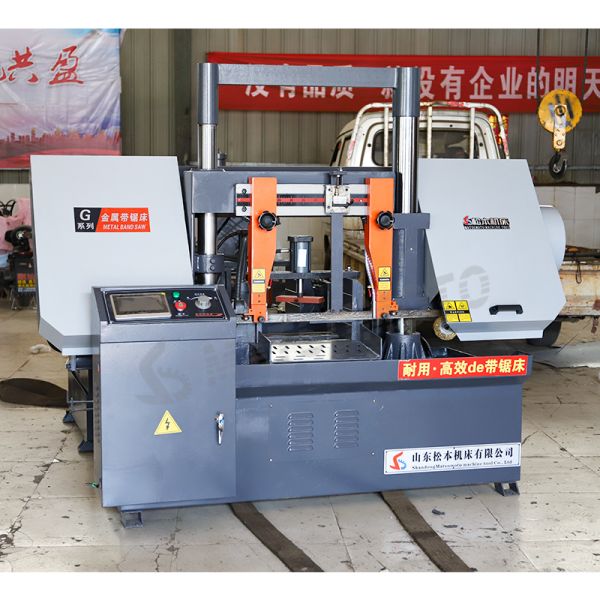

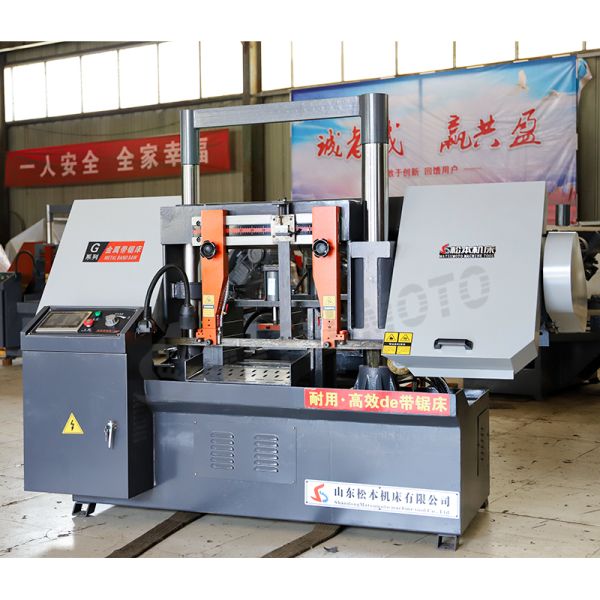

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
Specifications
Brand Name :
Matsumoto
Model Number :
GSK4240
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$4800-5500
Delivery Time :
15 working days
Packaging Details :
plywood case
Swing range :
Φ400mm
Belt saw blade size :
32*1.1*4590mm
Saw blade speed :
19-86m/min
Main motor :
3kw
Working table height :
3.2MPa
Hydraulic system pressure :
575mm
Description

GSK4240 CNC Band Sawing Machine Metal Band Sawing Machine Factory Direct Sales

  • The main performance characteristics:

  • Double up right column machine type, rigidity good stability.

  • Hand wave feeding mechanism, sawing automatic cycle.

  • Feeding stepless speed change, saw belt stepless speed change.

  • The size of the positioning device, for batch production.

  • Application:

For high precision metal cutting is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Main technical parameters

GSK4240

Swing range

Round steel

Φ400mm

Square material

400*400mm

Belt saw blade size

32*1.1*4590mm

Saw blade speed

19-86m/min

Motor power

Main motor

3kw

Oil pump motor

1.5kw

Cooling pump motor

0.09kw

Hydraulic system pressure

3.2MPa

Working table height

575mm

Sawing machine external from size

2264*1304*1862mm

Package size

2678*1780*2150mm

N.W/G.W

1410/1800kg

  • Details Images

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment

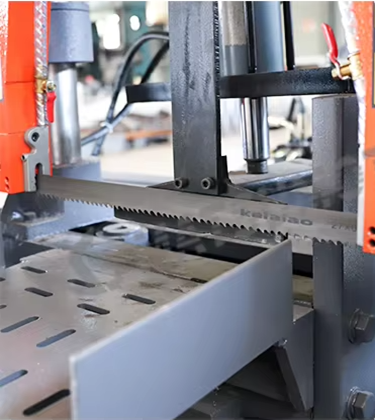

TENSION ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment

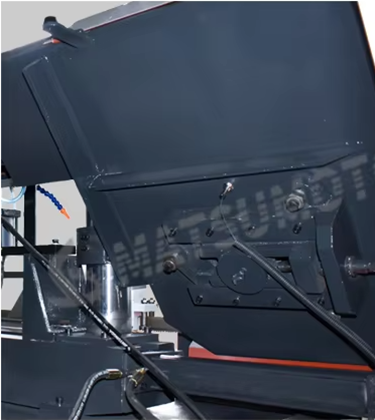

REDUCER

Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment

CLAMPING METHOD

The power is hydraulic,which is more stable, and the jaws are made of high-density ductile iron,which is firm.

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment

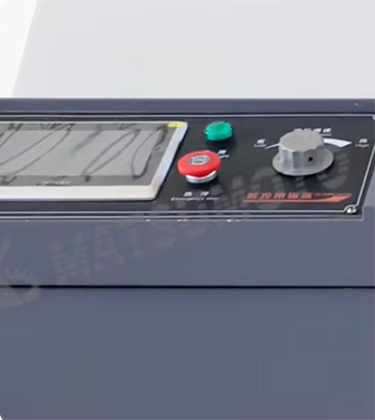

PLC CONTROL

PLC control for automatic cutting.

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment

GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
