Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
Specifications
Brand Name :
Matsumoto
Model Number :
G4250X
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$4200-4800
Payment Terms :
T/T
Delivery Time :
10 working days
Packaging Details :
plywood case
Cutting range :
500-500*500mm
Saw blade size :
5800*41*1.3mm
Blade speed :
27,45,69m/min
Clamping type :
Hydraulic pressure
Rotate angle :
0-45°
Saw belt tensioning mode :
manual
Description

G4250X Metal Angle Band Sawing Machine Durable Angle Sawing Machine

Description:

1. Double column structure, vertical lifting, high stability;
2. According to the user's request, the rotation angle can be set by the user. When the work piece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;
3. Cutting speed hydraulic control, step less speed regulation;
4. The work piece is clamped to hydraulic clamping, which is easy to operate;
5. Three-way hydraulic clamping device can be customized.

Model
G4250X
Cutting range
500-500*500mm
Saw blade size
5800*41*1.3mm
Blade speed
27,45,69m/min
Clamping type
Hydraulic pressure
Rotate angle
0-45°
Saw belt tensioning mode
manual
Main motor power
5.5kw
Hydraulic motor power
0.75kw
Coolant pump motor power
0.125kw
Overall dimension
2800*1300*2000mm
Weight
1800KG

  • Details Images:

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure

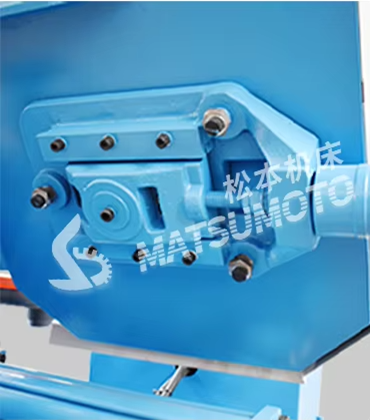

TENSION ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure

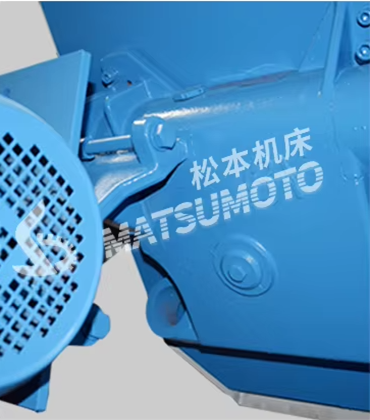

REDUCER

Smooth operation,no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure

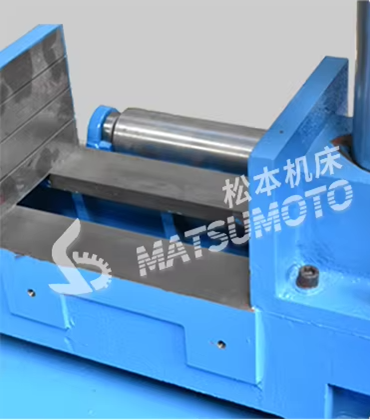

CLAMPING METHOD

The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm.

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure

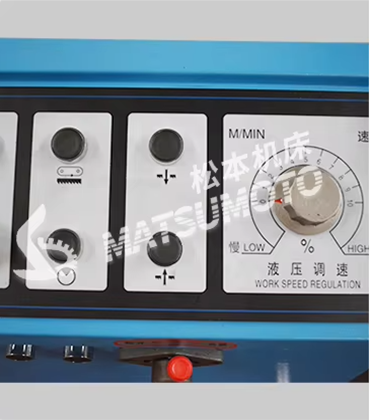

BUTTON+KNOB

Easy to operate, improve processing efficiency and reduce misoperation.

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
