GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
Specifications
Brand Name :
Matsumoto
Model Number :
GT4240
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$2800-3500
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Swing range :
400-400*400mm
Blade speed :
27,45,69m/min
Blade size :
5000*41*1.3mm
Main motor power :
5.5KW
Hydraulic motor power :
0.75KW
Cooling pump power :
0.09KW
Description

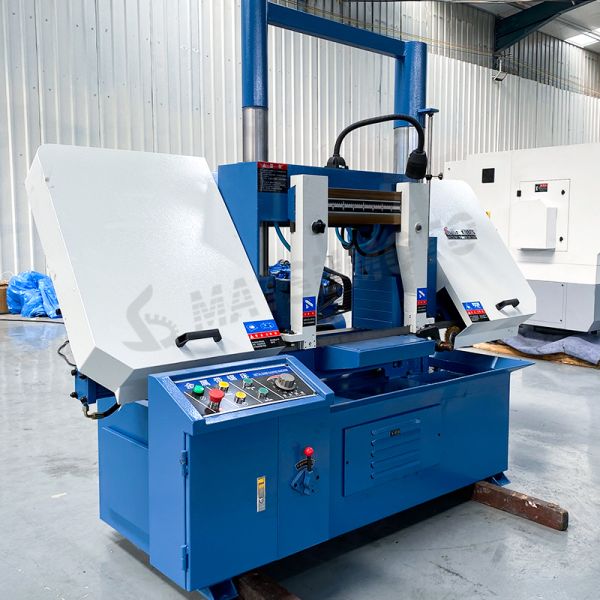

GT4240 Horizontal Band Saw Gantry Type Bandsaw Machine Metal Sawing Machine

  • Product Parameters:

Double-column structure vertical lifting high stability.

The hydraulic pressure controls the speed of saw stepless speed regulation.

The camp of workpieces and hydraulic, control easy.

Specifications

GT4230

GT4235

GT4240

Swing range

300-300*300mm

350-350*350mm

400-400*400mm

Blade speed

27,45,69m/min

27,45,69m/min

27,45,69m/min

Blade size

3505*27*0.9mm

4115*34*1.1mm

5000*41*1.3mm

Main motor power

3kw

4kw

5.5kw

Hydraulic motor power

0.75kw

0.75kw

0.75kw

Cooling pump power

0.09kw

0.09kw

0.09kw

Machine weight

1500kg

1700kg

2100kg

Overall dimension

2000*2450*1650mm

2250*2450*1650mm

2460*2320*2000mm

Standard equipment

Optional equipment

Saw blade belt

Hydraulic workpiece clamping

Bundle vise

Material support stand

Coolant system

Work lamp

Operation manual

Automatic blade breakage control

Fast drop protection devise

Hydraulic blade tension

Automatic chip removal device

Various blade linear speed

Blade protection convers

Wheel cover opening protection

CE standard electrical equipment

  • Details Images:

GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal

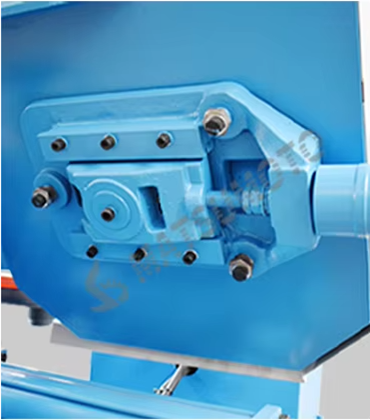

TENSION ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal

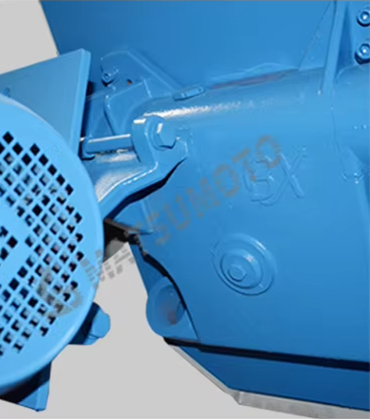

REDUCER

Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal

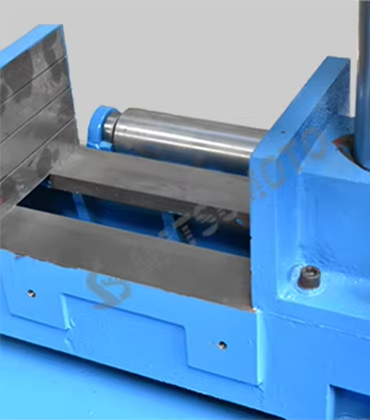

CLAMPING METHOD

The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm.

GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal

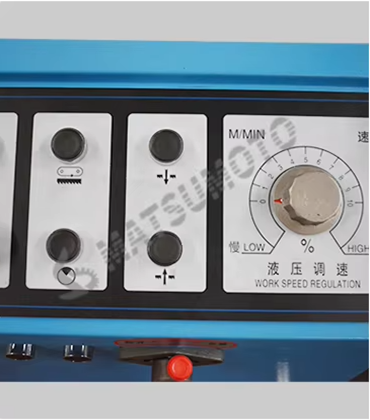

BUTTON+KNOB

Easy to operate, improve processing efficiency and reduce misoperation.

GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
