GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
Specifications
Brand Name :
Matsumoto
Model Number :
GT4230
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$3800-4500
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Cutting range :
300*300mm
Saw band specification :
3505*27*0.9mm
Wire speed of saw band(3 steps) :
27/45/69m/min
Work clamping method :
Hydraulic
Saw band tension type :
Manual
Spindle motor power :
3 kw
Description

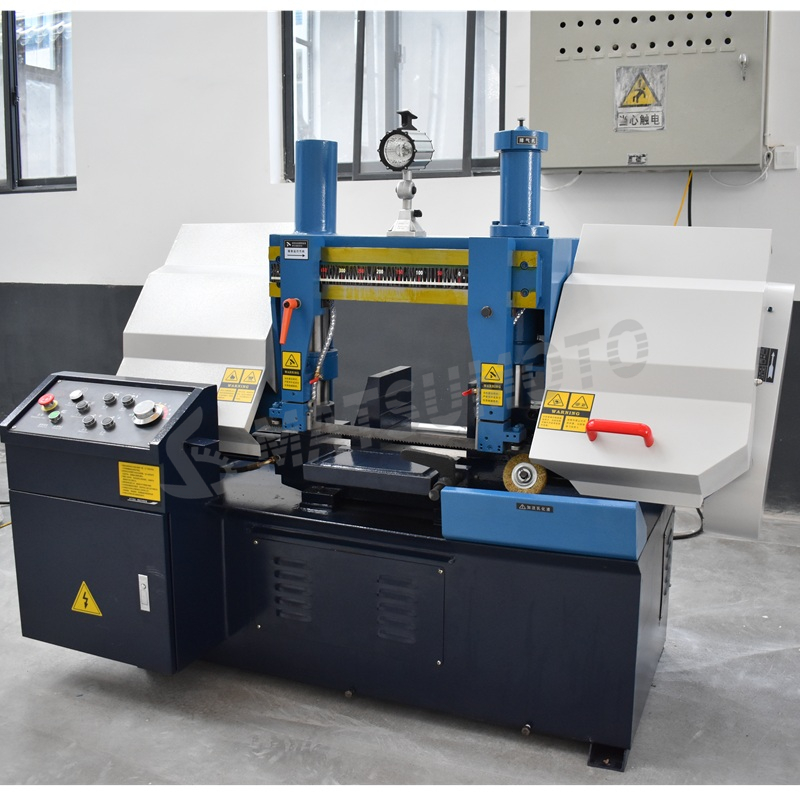

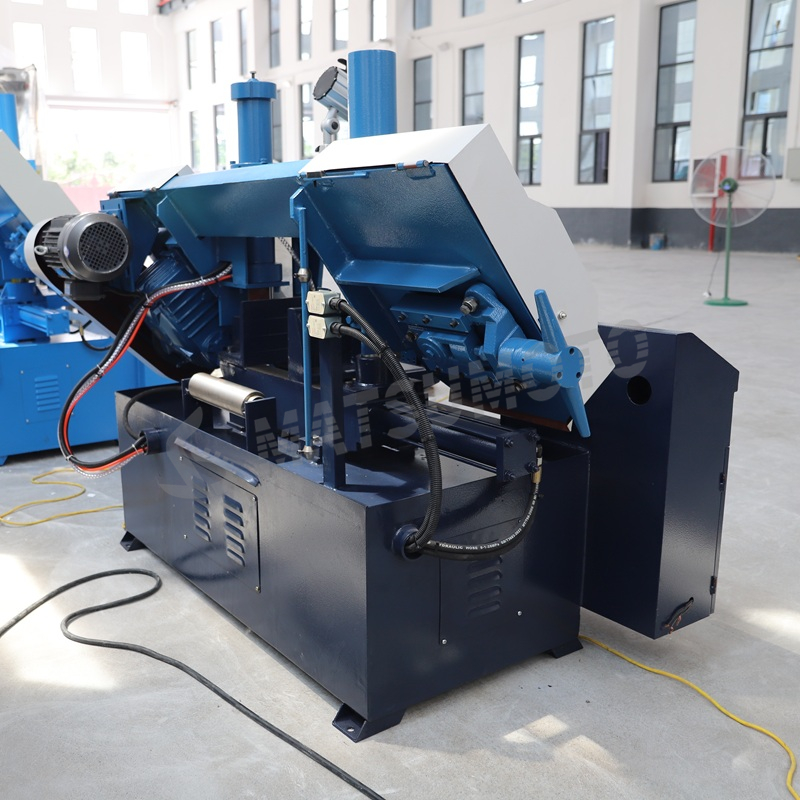

GT4230 Double Column Band Sawing Machine Metal Band Sawing Machine

The main performance characteristics:

1. Button type control panel, sawing mode change flexible, manual and automatic combination.

2. PLC controller, complete automatic sawing process, feeding length 0-500 mm.

3. Double upright column structure, vertical lift, high stability.

4. Cutting speed hydraulic control, stepless regulation speed.

5. Stable performance, high efficiency, suitable for bulk material sawing.

  • Application:

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

The load-bearing gorce of the beam is strengthened, durable and not deformed, and the wheel is durable and balaced, protecting the saw blade. One click automatic sawing, removing complicated operation processes easy to get started.

PROJECT

UNIT

GT4230

GT4235

Cutting range

mm

300*300

350*350

Saw band specification

mm

3505*27*0.9

4115*34*1.1

Wire speed of saw band(3 steps)

m/min

27/45/69

2745/69

Work clamping method

/

Hydraulic

Hydraulic

Saw band tension type

/

Manual

Manual

Spindle motor power

kw

3

3

Hydraulic motor power

kw

0.55

0.75

Weight

kg

900

1100

Dimension(L*W*H)

mm

1800*1200*1500

2000*2350*1600

  • Details Images:

GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw

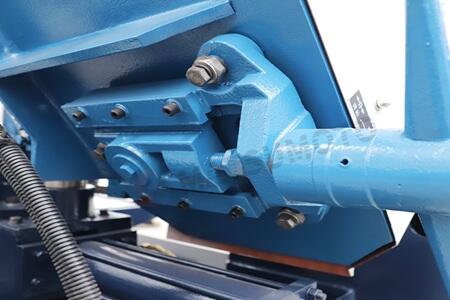

TENSION ADJUSTMENT

The band saw tension can adjusted according to different working conditions to improve sawing efficiency.

GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw

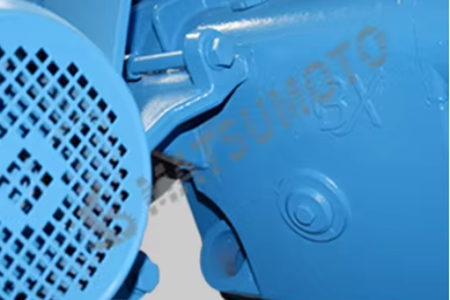

REDUCER

Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw

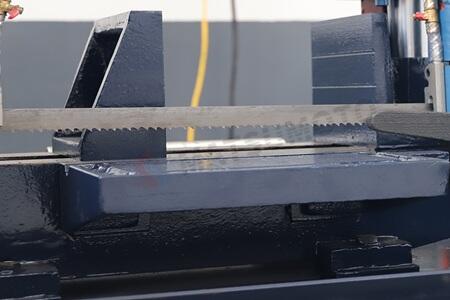

CLAMPING METHOD

The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm.

GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw

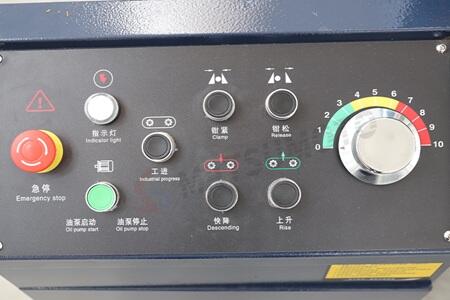

BUTTON+KNOB

Easy to operate, improve processing efficiency and reduce misoperation.

GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw

GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
