Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
Specifications
Brand Name :
Matsumoto
Model Number :
G4230X
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$4000-4500
Payment Terms :
T/T
Delivery Time :
10 working days
Packaging Details :
plywood case
Band saw blade specifications :
27/45/69m/min
Blade size :
3850*27*0.9m/min
Main motor power :
2.2kw
Hydraulic motor power :
0.55kw
Coolant motor power :
0.04kw
Machine weight :
900kg
Description

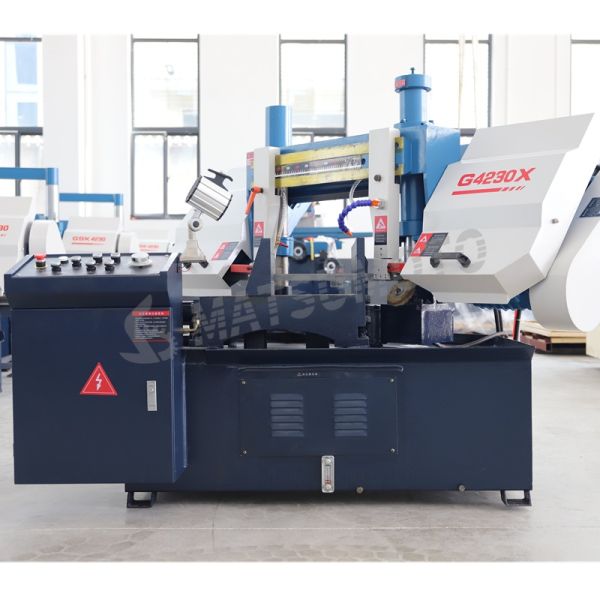

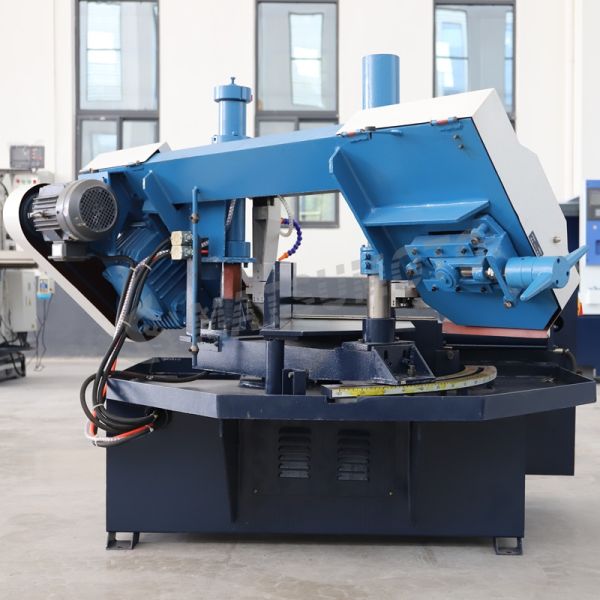

G4230X High Quality Angle Band Saw Semi-Automatic Metal Sawing Machine

  • Main features of G series angle angle band sawing machine:

1. Double column structure, vertical lifting, high stability;

2. According to the user's request, the rotation angle can be set by the user. When the workpiece is not moving and the whole

machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;

3. Cutting speed hydraulic control, stepless speed regulation;

4. The workpiece is clamped to hydraulic clamping, which is easy to operate;

5. Customizable three-way hydraulic clamping device.

  • Application:

The crossbeam has strengthened load-bearing capacity and is durable without deformation. The cutting angle supports customization.

Model
G4230X
Cutting range
0° 300*300mm
45° 220*300mm
Saw blade size
4030*34*1.1mm
Blade speed
27,45,69m/min
Clamping type
Hydraulic pressure
Rotate angle
0-45°
Saw belt tensioning mode
Manual(Saw band breakage protection)
Main motor power
3kw
Hydraulic motor power
0.55kw
Coolant pump motor power
0.125kw
Overall dimension
1800*1200*1500mm
Weight
900KG

  • Details Images:

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

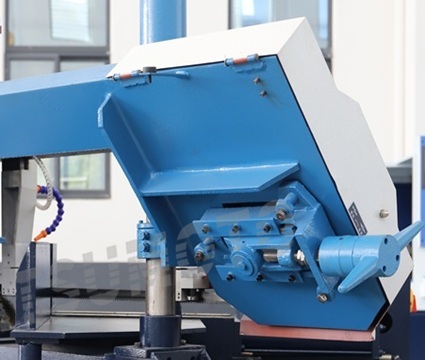

TENSION ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

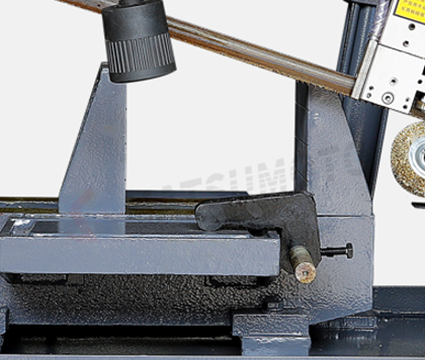

CLAMPING METHOD

Hydraulic clamping, jaws made of high-density ductile iron, clamping firmly.

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

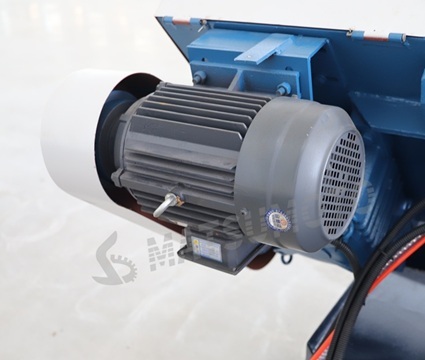

REDUCER

Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

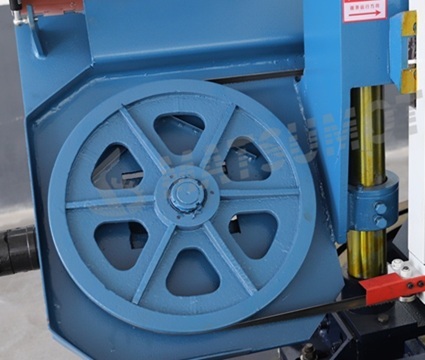

LARGE ROULETTE

Enlarging the roulette, improving the stability and reducing the wear of the saw blade.

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

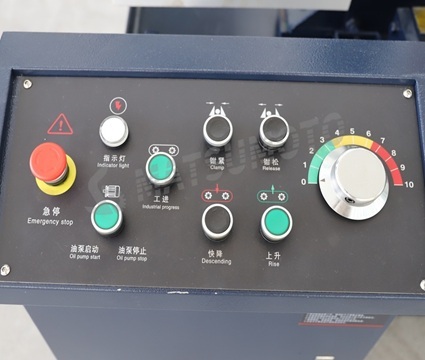

BUTTON+KNOB

Easy to operate, improve processing efficiency and reduce misoperation.

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

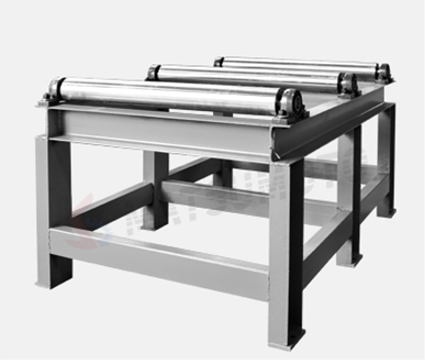

FEEDING RACK(OPTIONAL)

One-button key control automatic feeding, saving labor and improving efficiency.

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine

Industrial G4230X Angle Cutting Band Saw Semi Automatic Metal Sawing Machine
