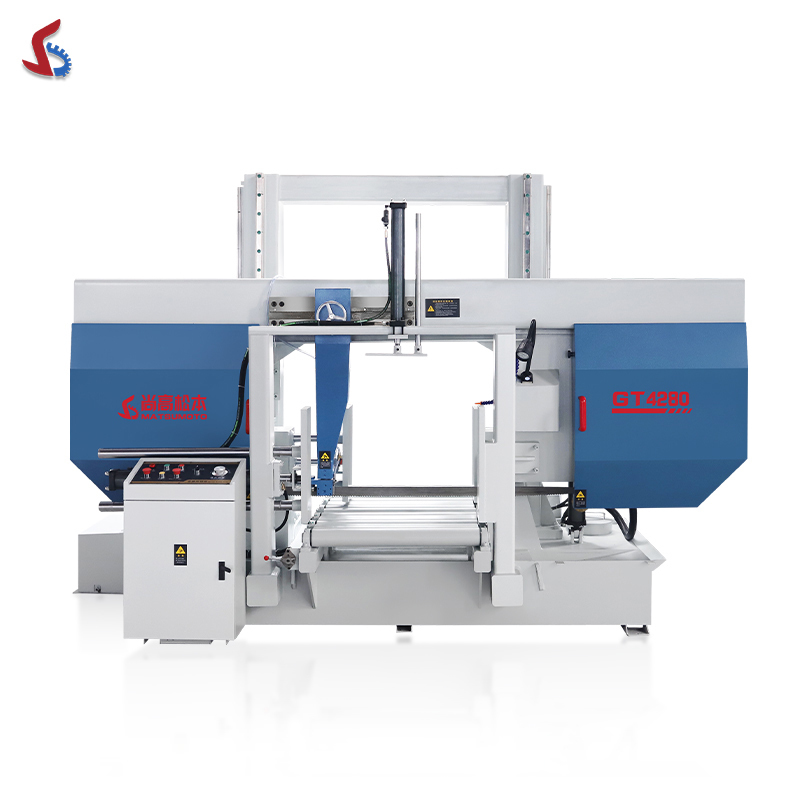

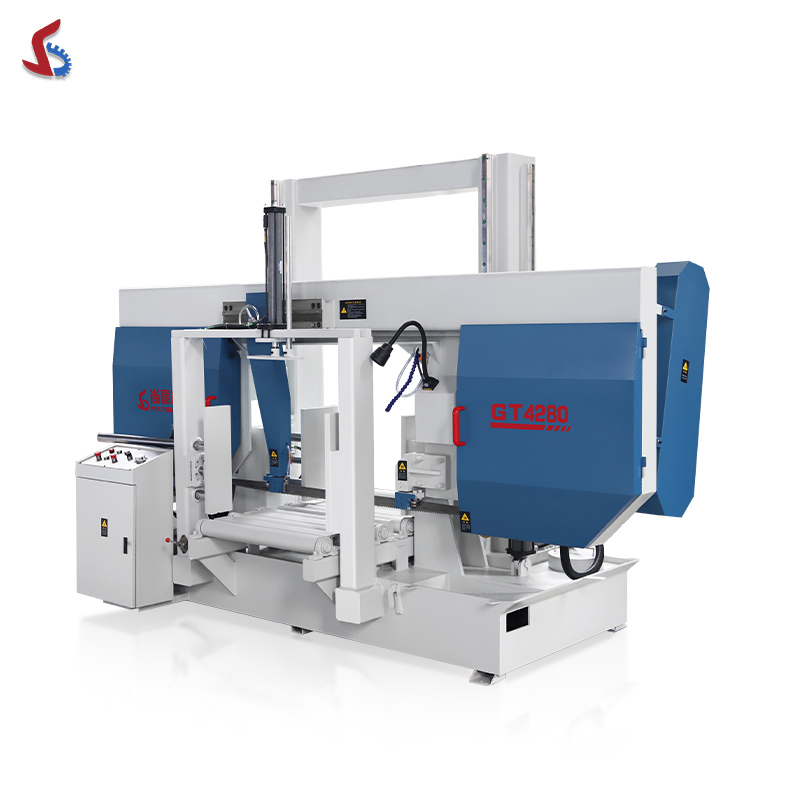

GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity
Specifications
Model Number :
GT4280
blade speed (m/min) :
27
Payment Terms :
T/T
Price :
11000-12500
Delivery Time :
20working days
MOQ :
1
Packaging Details :
plywood case
Certification :
CE
cutting capacity (mm) :
800-800*800
Place of Origin :
China
Blade speed :
27,45,69 m/min
Brand Name :
Matsumoto
saw blade tension method :
Hydraulic
Description

GT4280 Gantry Band Sawing Machine with 800mm Cutting Capacity


  • Main features:

1.Double column structure, vertical lifting, high stability.

2.High efficiency, high precision save material saving energy.

3.The hydraulic pressure controls the speed of saw stepless speed regulation.

4.The camp of workpieces and hydraulic, control easily.

5.Can made 3 hydraulic tension saw blades per request.


Description:

GT4280 is a heavy-duty gantry double-column horizontal metal band saw machine, specially designed for cutting large cross-section metal workpieces with max cutting capacity of 800mm round bar & 800×800mm square block.


Model
Unit
GT4280
Cutting range
steel
mm
Φ800
square
mm
800×800
Saw blade size
mm
7205×54×1.6
Blade speed
m/min
27-69
Motor power
Main motor power
kw
7.5
Hydraulic motor power
kw
2.25
Coolant pump motor power
kw
0.75
Clamping type
/
Hydraulic pressure
Machine size
mm
4130×2150×2500


Applicable Materials:

All ferrous & non-ferrous metals: solid round steel, square billet, alloy steel, stainless steel, steel pipe, copper, aluminum, mold steel, forged blocks, cast ingots, bundled rebar.
