Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
Color :
Yellow Or White
Bulk Density :
2.6gm/cc
Hardness :
800 HV
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Refractory Cordierite Ceramics High Temperature Resistant High Insulation Mullite Ceramic Ring
Product Attributes
Attribute Value
Material Cordierite Ceramics
Color Yellow Or White
Bulk Density 2.6gm/cc
Hardness 800 HV
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Cordierite ceramic is one of the most popular ceramics for its properties of excellent thermal stability, high refractoriness, good chemical durability, low dielectric constant, and low thermal expansion.

Features & Advantages
High hardness - Provides excellent durability and wear resistance
High heat resistance - Excellent thermal stability makes it ideal for high-temperature applications
Good wear resistance - Ideal for industrial wear parts
High electrical resistivity - Excellent insulating properties
High corrosion resistance - Resistant to water and most chemical solutions
Technical Specifications
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012

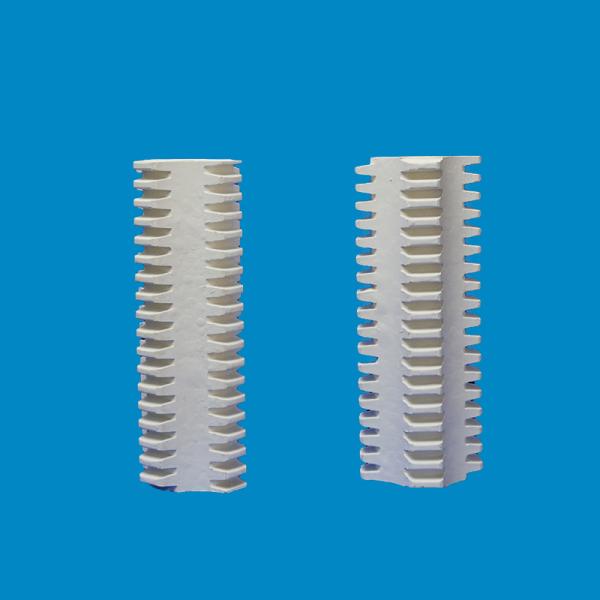

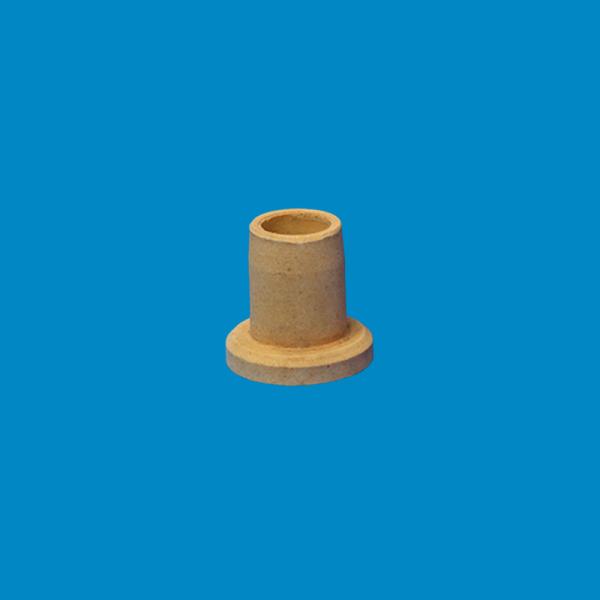

Product Images
