Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
The main chemical ingredient :
MgO, Al2O3,SiO2
Thermal Shock Resistance :
250°C
Bulk Density :
2.6 gm/cc
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Bulk Density 2.6 gm/cc Cordierite Ceramics Properties For Increased Catalyst Effectiveness
Product Attributes
Attribute Value
Material Cordierite Ceramics
The main chemical ingredient MgO, Al2O3,SiO2
Thermal Shock Resistance 250°C
Bulk Density 2.6 gm/cc
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description
Cordierite porous ceramics can be used as filtration and separation materials. By utilizing the characteristics of interconnected pore sizes and uniform size distribution of porous ceramics, gas and liquid filtration and separation can be achieved.
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3,SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Fracture Toughness K(I c) Mpa m1/2 -
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012

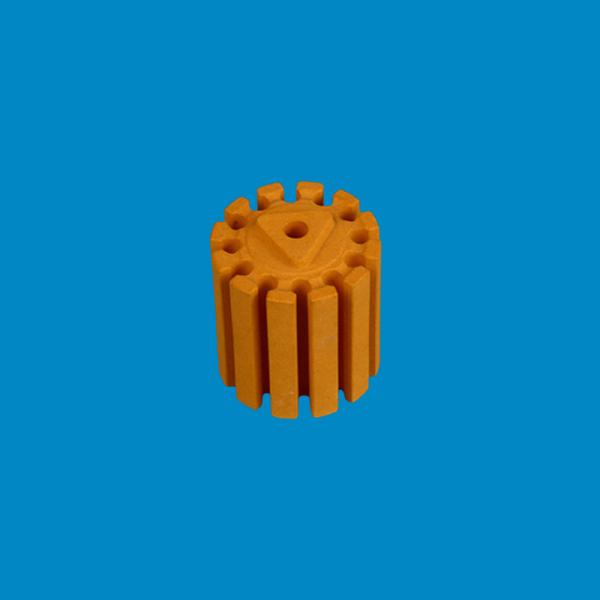

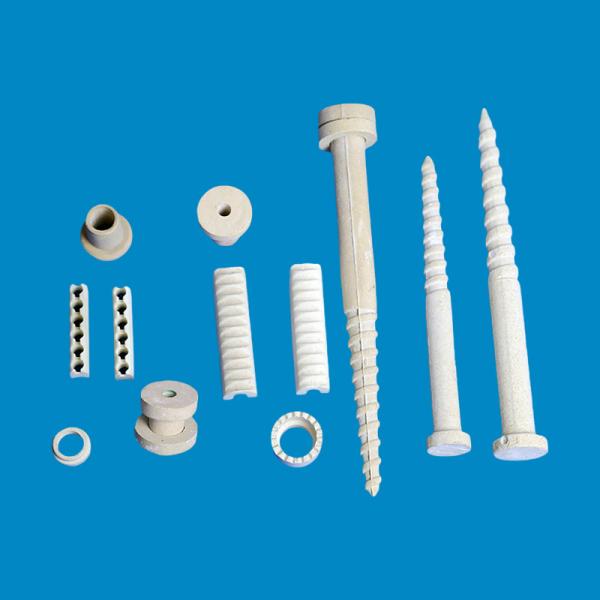

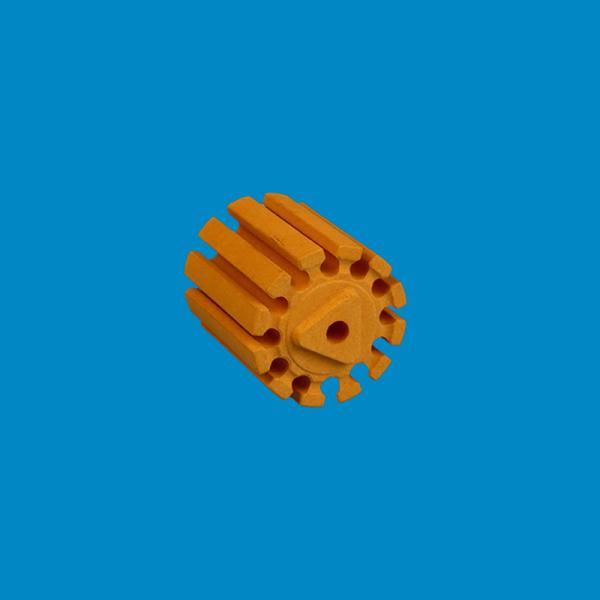

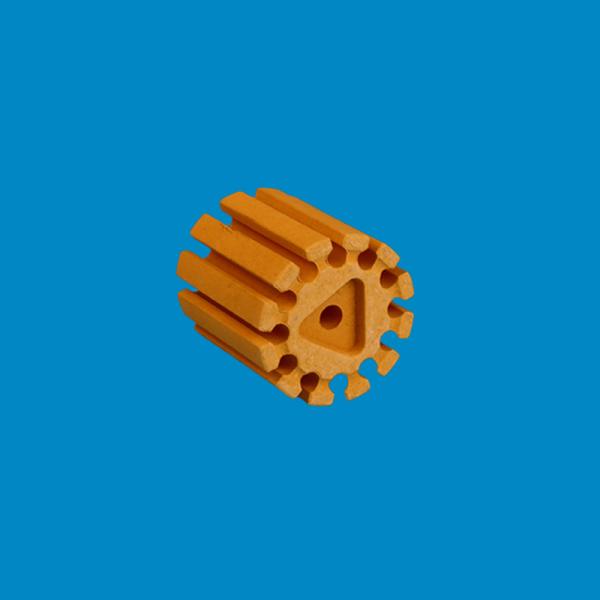

Product Images
High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics
