Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
The main chemical ingredient :
MgO, Al2O3,SiO2
Thermal Shock Resistance :
250°C
Bulk Density :
2.6 gm/cc
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Upgrade To Cordierite Ceramics MgO Al2O3 SiO2 For Improved Industrial Efficiency
Product Description
Cordierite porous ceramics serve as excellent catalyst support materials, enhancing catalyst efficiency by providing optimal shape, mechanical strength, and uniform dispersion of trace catalysts. These honeycomb-shaped porous ceramic carriers are widely used in automotive applications due to their thin walls, high porosity, exceptional mechanical strength, thermal stability, and impact resistance.

Product Specifications
Attribute Value
Material Cordierite Ceramics
Main Chemical Ingredients MgO, Al2O3, SiO2
Thermal Shock Resistance 250°C
Bulk Density 2.6 gm/cc
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Technical Parameters
Item Test Condition Unit & Symbol Cordierite Ceramics
Main Chemical Ingredients MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm² 900
Compressive Strength 20℃ Kgf/cm² 3500
Thermal Expansion 1×10⁻⁶/℃ ≤2.0
Thermal Conductivity 25℃-30℃ W/m·k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectric Constant 1MHz.25℃ 6
Dielectric Strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 10¹²

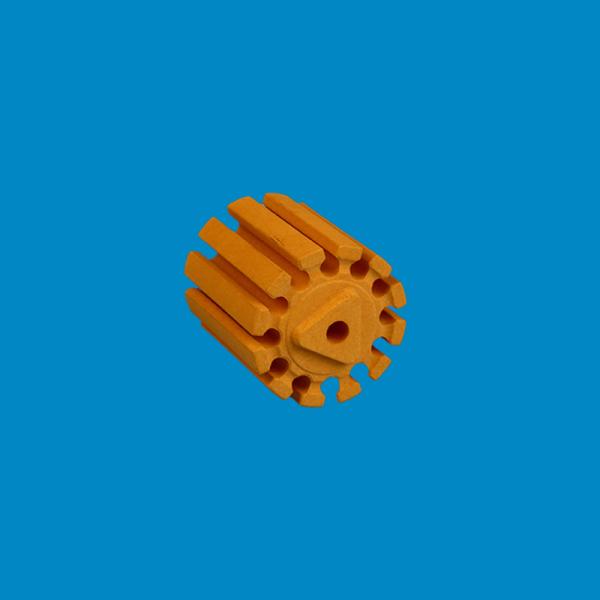

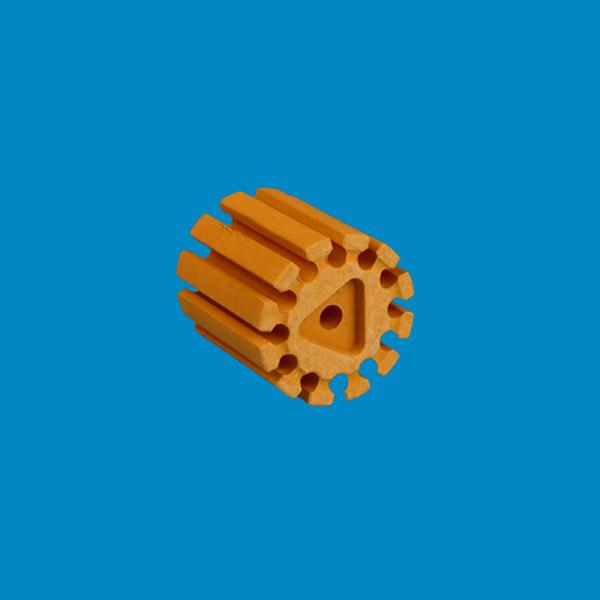

Product Images
Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories Catalyst MgO Al2O3 SiO2 Cordierite Ceramic High Alumina Refractories
