Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
The main chemical ingredient :
MgO, Al2O3,SiO2
Hardness :
800 HV
Compressive Strength :
3500 Kgf/cm2
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
800 HV Hardness Cordierite Ceramics For Industrial Grade Applications
Product Specifications
Material Cordierite Ceramics
The main chemical ingredient MgO, Al2O3,SiO2
Hardness 800 HV
Compressive Strength 3500 Kgf/cm2
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Cordierite is a natural mineral with limited natural reserves. Currently, cordierite is primarily obtained through artificial synthesis. While traditional preparation methods involve solid phase sintering, modern techniques have evolved to include sol-gel methods, molten glass processes, and low-temperature combustion synthesis.

Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3,SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Fracture Toughness K(I c) Mpa m1/2 -
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012

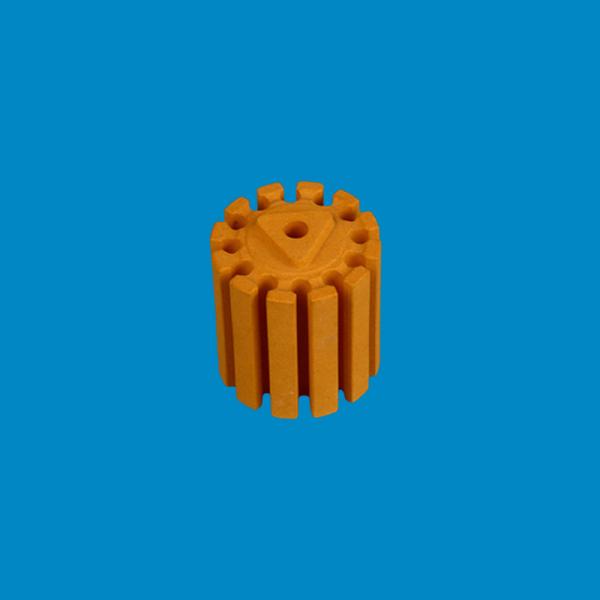

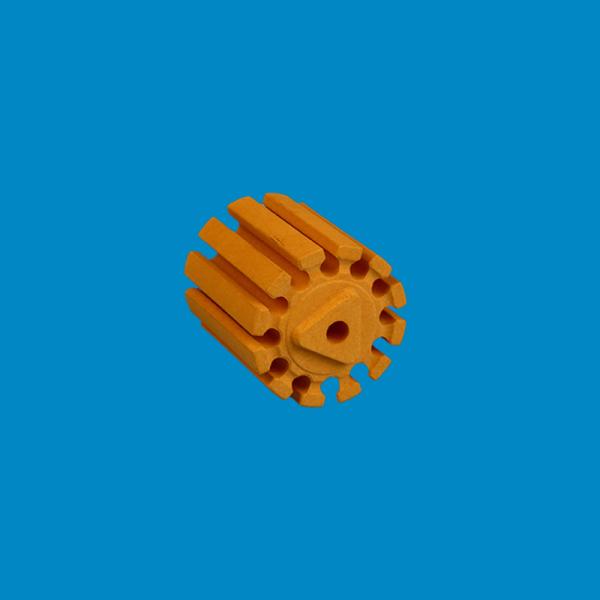

Product Images
Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness Industrial Refractory Ceramic Products White Tabular Alumina 800HV Hardness
