Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
Color :
customizable
Hardness :
800 HV
Bending Strength :
900 Kgf/cm2
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Boost Performance Cordierite Ceramics Customizable For Industrial
Product Specifications
Attribute Value
Material Cordierite Ceramics
Color Customizable
Hardness 800 HV
Bending Strength 900 Kgf/cm²
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description
Cordierite is a mineral with extremely high hardness, high density, and excellent wear resistance, significantly enhancing the physical properties of ceramics. Compared to other materials, cordierite offers superior thermal expansion coefficient and thermal conductivity, providing exceptional control over ceramic shrinkage rates and thermal stability.
Technical Parameters
Item Test Condition Unit & Symbol Cordierite Ceramics
Main Chemical Ingredient MgO, Al₂O₃, SiO₂
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm² 900
Compressive Strength 20℃ Kgf/cm² 3500
Thermal Expansion 1×10⁻⁶/℃ ≤2.0
Thermal Conductivity 25℃-30℃ W/m·k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectric Constant 1MHz.25℃ 6
Dielectric Strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 10¹²

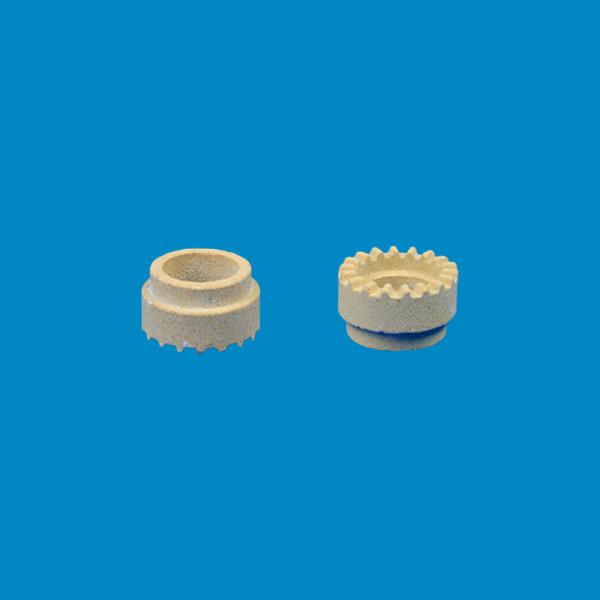

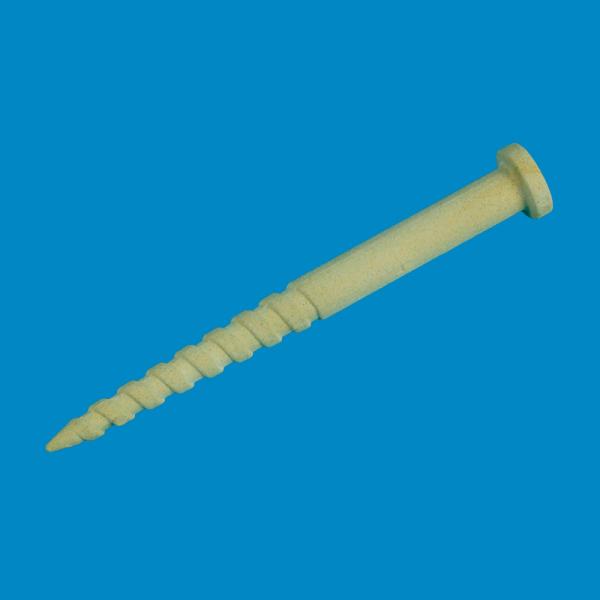

Product Images
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
