Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
Thermal conductivity :
1.3 W/m.k
Thermal Shock Resistance :
250°C
Volume Resistivity :
>1012 ohm-cm
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Thermal Shock Resistance 250°C Cordierite Ceramics For Filtration And Separation
Product Description

Cordierite has low thermal expansion and high thermal shock resistance, making it suitable for use as a refractory material. Cordierite can also be used as a material for electronic devices due to its excellent dielectric properties.

Product Attributes
Attribute Value
Material Cordierite Ceramics
Thermal conductivity 1.3 W/m.k
Thermal Shock Resistance 250°C
Volume Resistivity >1012 ohm-cm
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Fracture Toughness K(I c) Mpa m1/2 -
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012

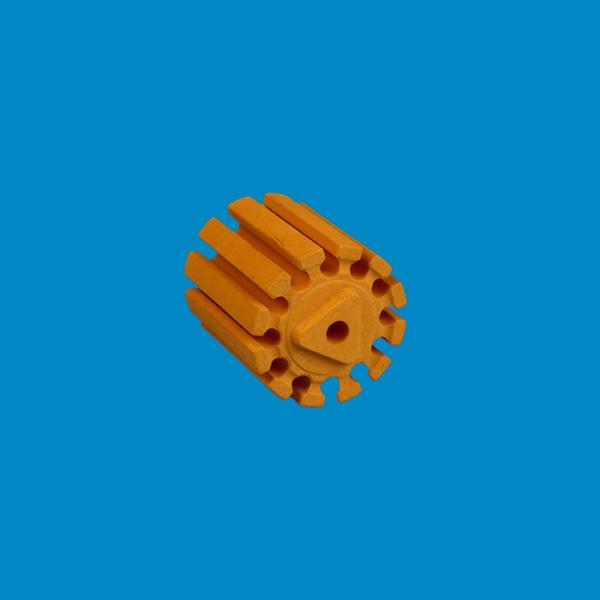

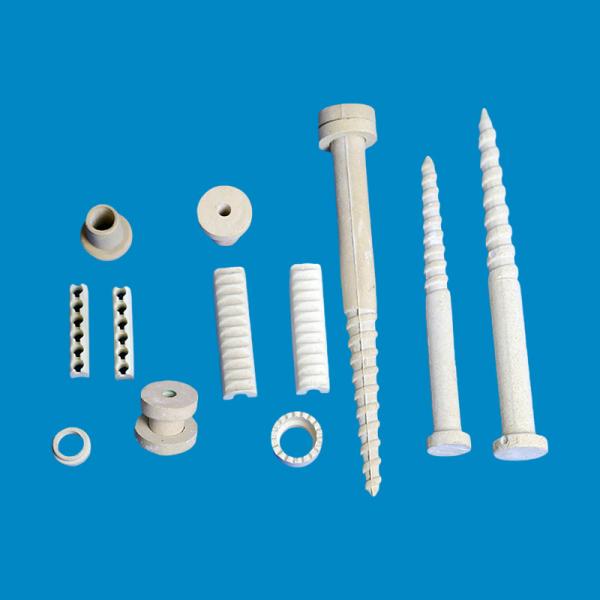

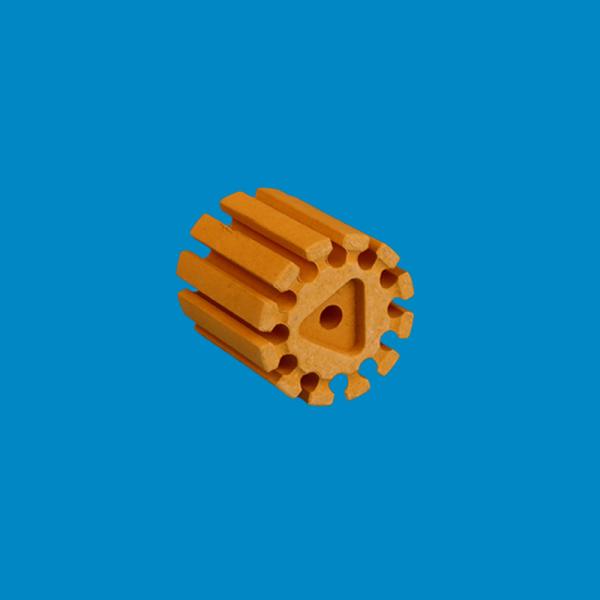

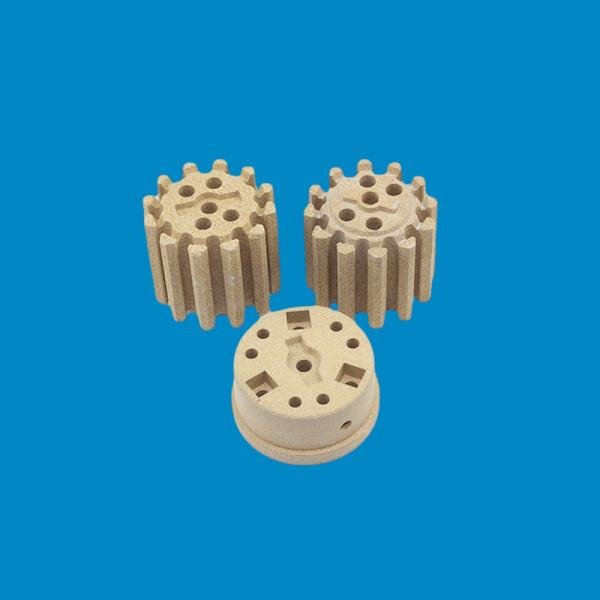

Product Images
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
