Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
Color :
Yellow Or White
Bulk Density :
2.6gm/cc
Hardness :
800 HV
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Low Dielectric Constant Cordierite Ceramics For Electrical Insulation
Product Specifications
Attribute Value
Material Cordierite Ceramics
Color Yellow Or White
Bulk Density 2.6gm/cc
Hardness 800 HV
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description

Cordierite ceramics feature exceptional properties including low thermal expansion coefficient, minimal thermal conductivity, excellent thermal shock resistance, low dielectric constant, reduced dielectric loss, and superior chemical stability. These characteristics make them ideal for applications in metallurgy, electronics, automotive, chemical, and environmental protection industries.

Item Test Condition Unit & Symbol Cordierite Ceramics
Main Chemical Ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Fracture Toughness K(I c) Mpa m1/2 -
Thermal Expansion 1X 10-6/℃ ≤2.0
Thermal Conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectric Constant 1MHz.25℃ 6
Dielectric Strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012

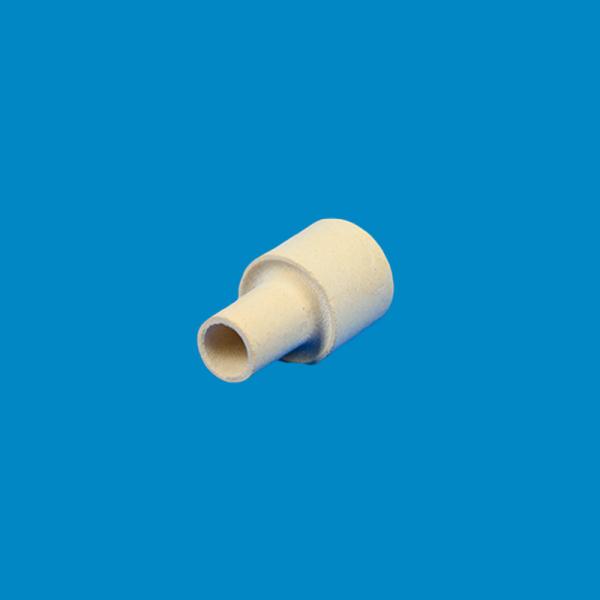

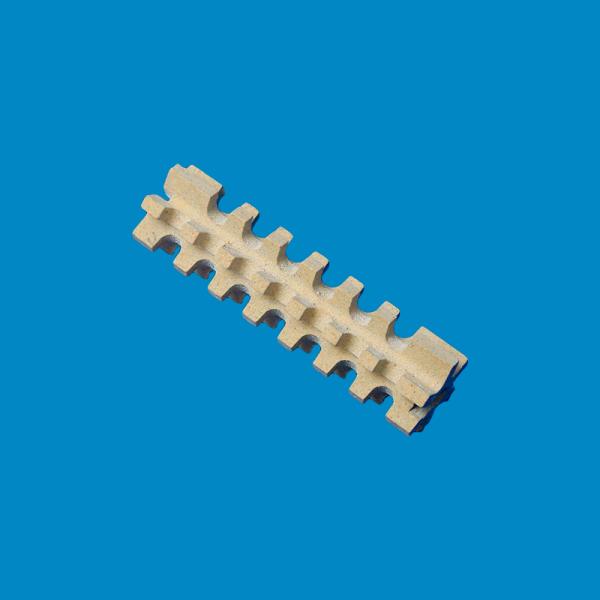

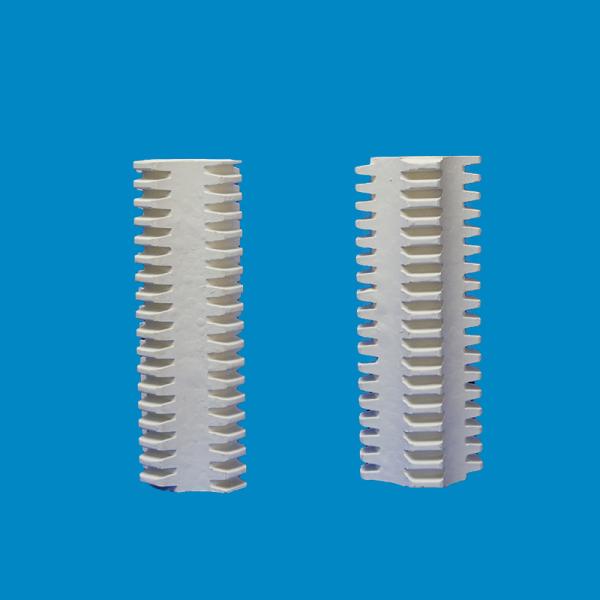

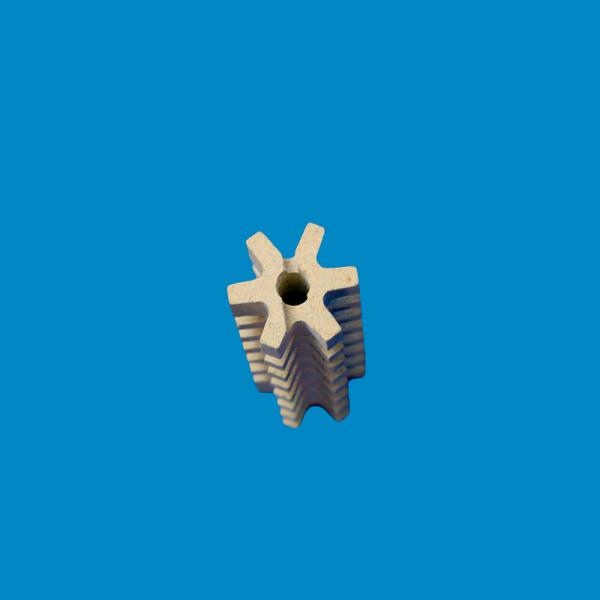

Product Gallery
Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories Automotive Electrical Insulation Cordierite Ceramics Alumina In Refractories
