Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
The main chemical ingredient :
MgO, Al2O3,SiO2
Hardness :
800 HV
Compressive Strength :
3500 Kgf/cm2
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Maximize Efficiency Cordierite Ceramics Density 2.6gm/Cc Ideal For Industrial-Grade
Product Description
Cordierite ceramics are one of the common low thermal expansion ceramics. Foreign researchers began researching and developing cordierite over 100 years ago and first synthesized it in the 1880s, naming it Cordierite.
Product Specifications
Attribute Value
Material Cordierite Ceramics
The main chemical ingredient MgO, Al2O3,SiO2
Hardness 800 HV
Compressive Strength 3500 Kgf/cm2
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Technical Properties
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3,SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012

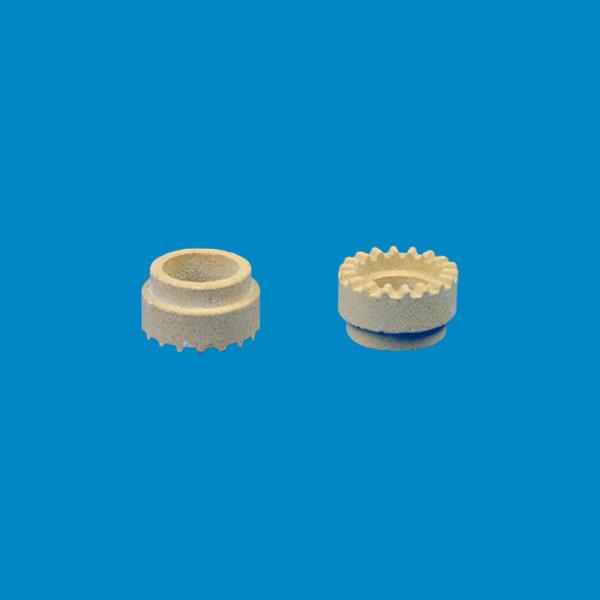

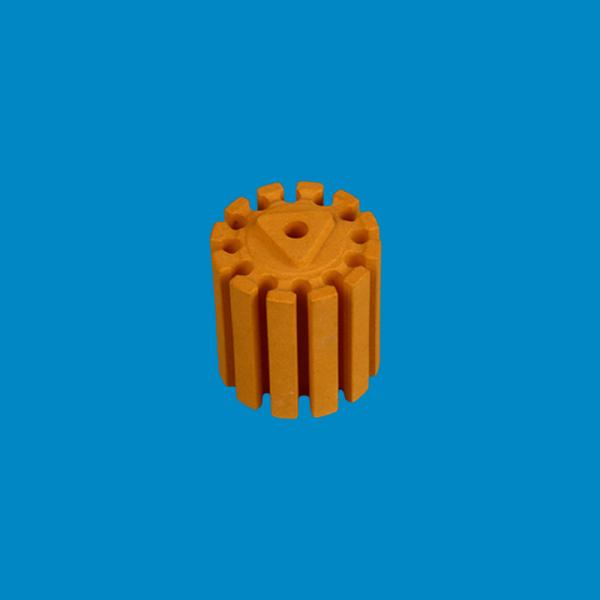

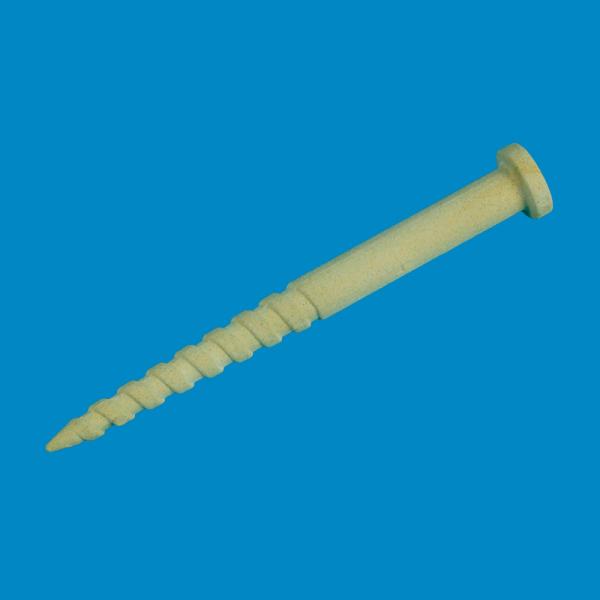

Product Images
Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM
