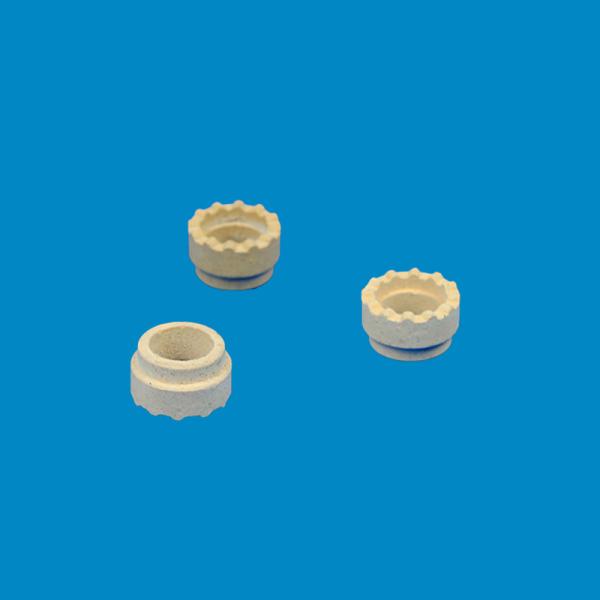

Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
Color :
customizable
Hardness :
800 HV
Bending Strength :
900 Kgf/cm2
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Efficiently Control Shrinkage With Cordierite Ceramics For Industrial Grade 900 Kgf/Cm2
Product Description

Cordierite ceramics are primarily used in industrial applications including ceramic kiln shed plates, saggars, electronic packaging materials, catalyst carriers, foam ceramics, bioceramics, and high-temperature thermal radiation materials. With limited natural reserves and low-grade availability, most cordierite materials are artificially synthesized.

This material offers exceptional properties including low thermal expansion coefficient, high compressive strength, and excellent fire resistance, making it ideal for refractory industry applications. Its thermal shock resistance makes it particularly valuable for high-temperature environments.

Product Specifications
Attribute Value
Material Cordierite Ceramics
Color Customizable
Hardness 800 HV
Bending Strength 900 Kgf/cm2
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Fracture Toughness K(I c) Mpa m1/2 -
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012
Product Images
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
