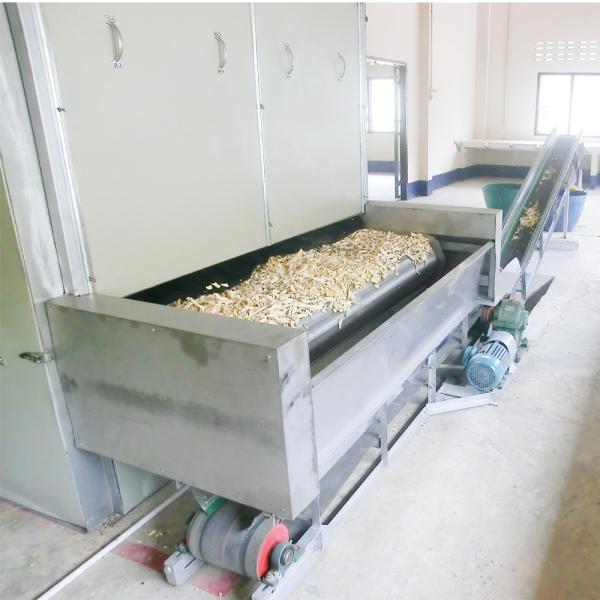

Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
Specifications
Brand Name :
HengShou
Model Number :
HSKJ-04
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Potato Belt Drying Equipment
Rotating speed :
Variable frequency adjustable (r/min)
Applicable Industries :
Food Shop，Farms
Power :
40KW
Custom processing :
Yes
Heat transfer area :
Customized to size
Description

Mesh belt type electric heating energy sweet potato continuous Belt Drying Equipment

Quick Detail:

  • Preferred material
  • Good quality and long life
  • Small footprint

Description:

  1. Belt Drying Equipment unique air distribution device makes the hot air evenly distributed and ensures the consistency of product quality
  2. Fully automatic operation control of the equipment, simple operation, no need for manual supervision, saving time and effort
  3. Air volume, heating temperature, material residence time and feeding speed can be adjusted to achieve good drying effect

Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof

COMPANY PROFILE

Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof

PATENT CERTIFICATE

Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Electric Heating Sweet Potato 1.1kw Continuous Mesh Belt Dryer Machine Rustproof
