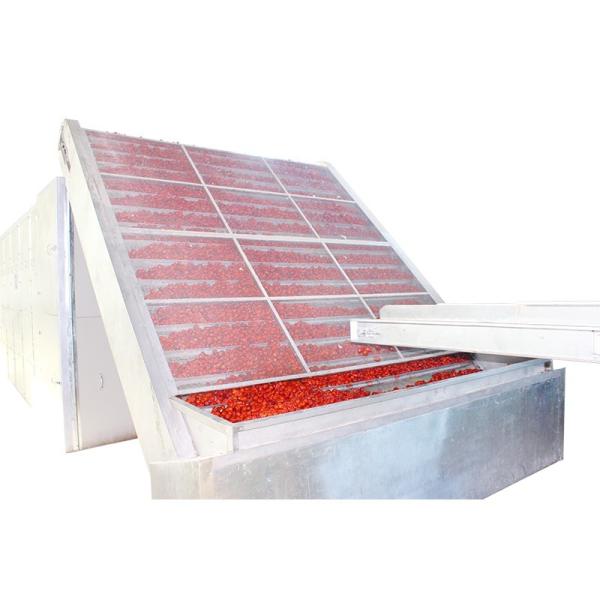

6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Mesh Belt Drying Equipment
Number of fans :
4-6
Number of layers (n) :
1-4
Operating temperature :
50-90℃
Drying output (t/h) :
6-20
Paving thickness :
10-80mm
Description

High Temperature Corrosion Resistance Mesh Belt Drying Equipment Oxidation Resistance Powerful

Description:

Mesh Belt Drying Equipment is batch and continuous production drying equipment. The main heating methods are electric heating, steam heating, and hot air heating. The main principle is to spread the material evenly on the mesh belt. The mesh belt is made of a 12-60 mesh steel mesh belt, which is dragged by the transmission device to move back and forth in the dryer. The drying machine is discharged from the moisture exhaust hole to achieve the purpose of drying. The length of the box is composed of standard sections. In order to save space, the dryer can be made into a multi-layer type. 6-40m, effective width 0.6-3.0m.

6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation

COMPANY PROFILE

6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation

PATENT CERTIFICATE

6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

6 To 20t/ H Mesh Belt Drying Equipment Anti Oxidation
