Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Cassava Belt Drying Equipment
Product Features :
Drying
Processing capacity :
3000kg/h
Net weight :
1800kg
Mesh belt layers :
4-12 layers (customizable)
Drying time :
2-12(h)
Description

Hot Air Inner Circulation Crawler Type Cassava Belt Drying Equipment

Quick Detail:

  • Overall drying solution
  • Precise process improvement technology
  • Technical innovation professional customization
  • Strict construction standards

Description:

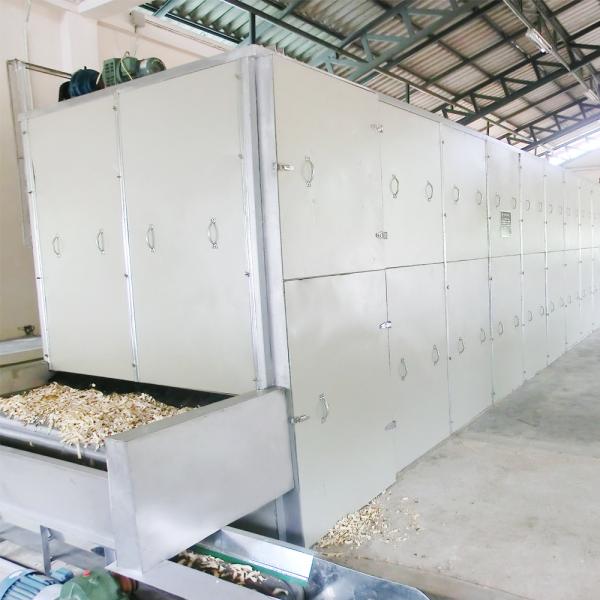

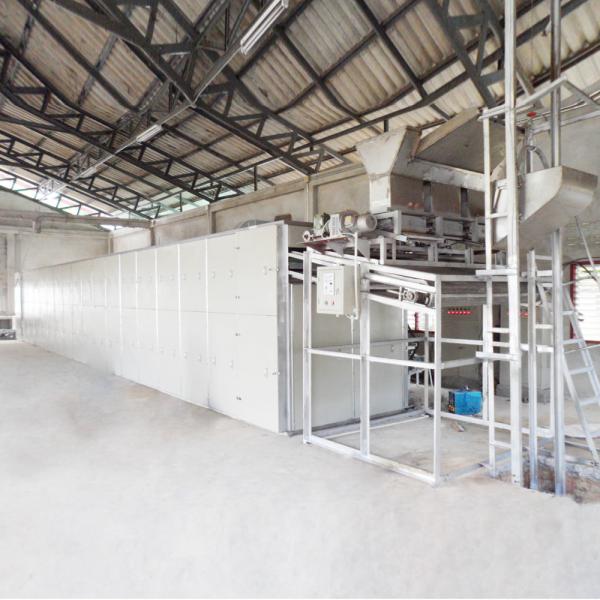

Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine

  1. Cassava Belt Drying Equipment unique air distribution device makes the hot air evenly distributed and ensures the consistency of product quality.

  2. Cassava Belt Drying Equipment equipment is fully automatic operation control, simple operation, no need for manual supervision, saving time and effort.

  3. Cassava Air volume, heating temperature, material residence time, and feeding speed can be adjusted to obtain a good drying effect.

  4. Cassava Belt Drying Equipment Through heat conduction, convection, and radiation heat transfer, the heat is fully utilized, and the air is recycled, which can save energy.

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine

COMPANY PROFILE

Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine

PATENT CERTIFICATE

Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Crawler Type Belt Drying Equipment Hot Air Inner Circulation Cassava Dryer Machine
