Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Dates Belt Drying Equipment
Drying temperature :
Customized according to heat source
structure type :
Horizontal type
Dimension(l*w*h) :
Varied
Raw material :
304 Sainless Steel
Operation method :
Intelligent continuous
Description

Use Air Circulation To Save Energy Fruit Belt Drying Equipment

Quick Detail:

  • High power
  • Low noise
  • Long service life
  • Can work for a long time

Description:

  1. The scope of application can meet the drying and large-scale continuous production of vegetable materials such as roots, stems, leaves, strips, blocks, flakes, and large granules, and at the same time, it can retain the nutritional value and color of the products.
  2. Typical dried materials are: garlic slices, pumpkin, carrot konjac, yam, bamboo shoots, horseradish, onions, apples, etc.
  3. Fruit Belt Drying Equipment is a continuous flow drying equipment, which is used for drying flake, strip, and granular materials with good air permeability. material is particularly suitable

Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

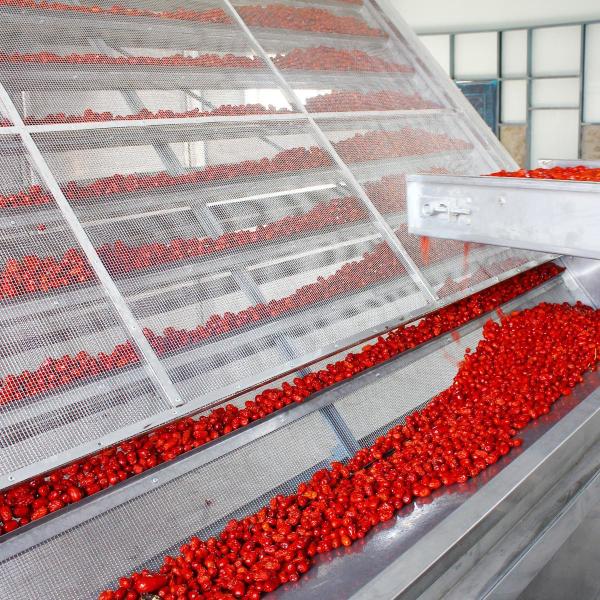

MATERIAL APPLICATION

Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables

COMPANY PROFILE

Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables

PATENT CERTIFICATE

Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Low Noise SS304 Belt Drying Equipment For Drying Fruits And Vegetables
