ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
ODM SGS Belt Drying Equipment Multi Layer Continuous
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Dried Peppers Belt Drying Equipment
Paving thickness: :
4-12m
Air Volume :
35000 square meter/h
Operation temperature :
60-120℃
Thickness of the material :
30-150mm
Drying time :
4-15 hours
Description

Information Intelligent Flow Work Dried Peppers Belt Drying Equipment Multi Layer Continuous

Description:

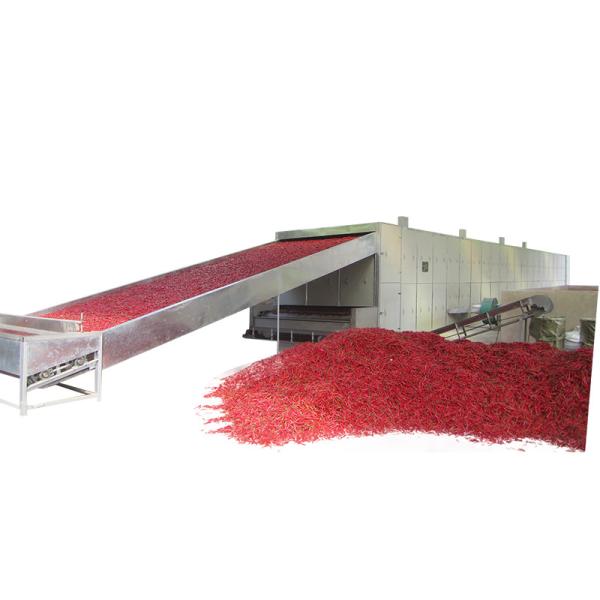

Dried Peppers Belt Drying Equipment is a continuous flow drying equipment, which is used for drying sheets, strip,s and granular materials with good air permeability. Especially suitable; this series of dryers have the advantages of fast drying speed, high evaporation intensity, and good product quality. For paste-like materials in the form of dewatered filter cakes, they can also be dried after being granulated or made into rods.

ODM SGS Belt Drying Equipment Multi Layer Continuous

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

ODM SGS Belt Drying Equipment Multi Layer Continuous

COMPANY PROFILE

ODM SGS Belt Drying Equipment Multi Layer Continuous

PATENT CERTIFICATE

ODM SGS Belt Drying Equipment Multi Layer Continuous

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

ODM SGS Belt Drying Equipment Multi Layer Continuous
