SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Fruit Belt Drying Equipment
Door material: :
Stainless Steel/Color Steel/Baking Paint/Polyurethane
Rotating speed :
Infinitely variable speed
Heat transfer area :
Design according to production requirements
Drying temperature :
0-120℃
Operation method :
Continuous
Description

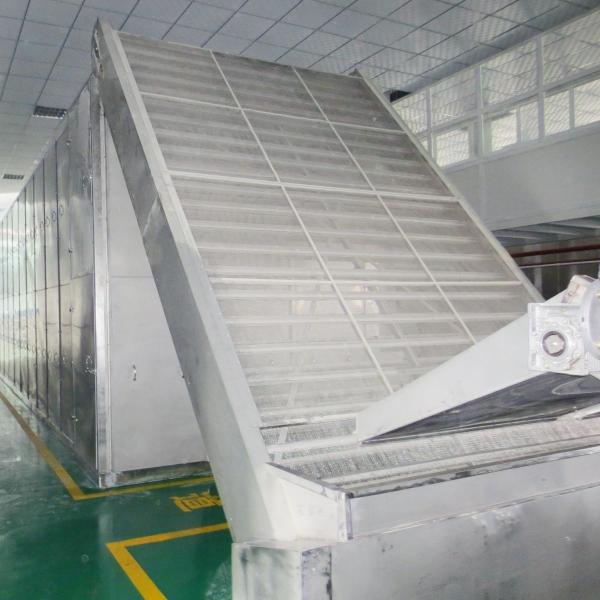

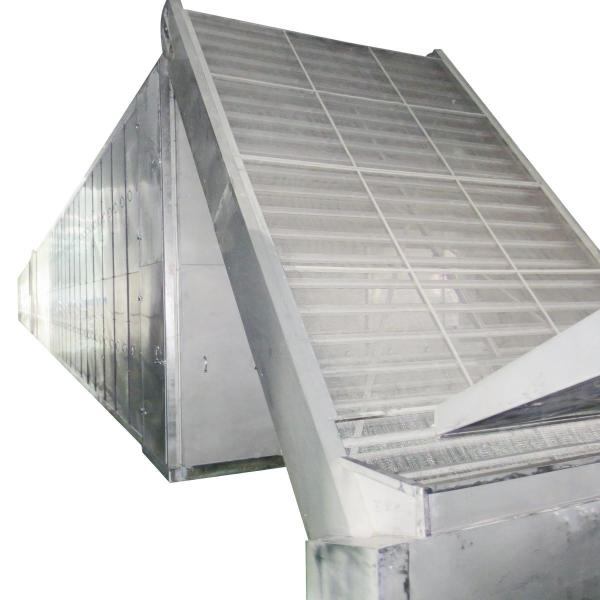

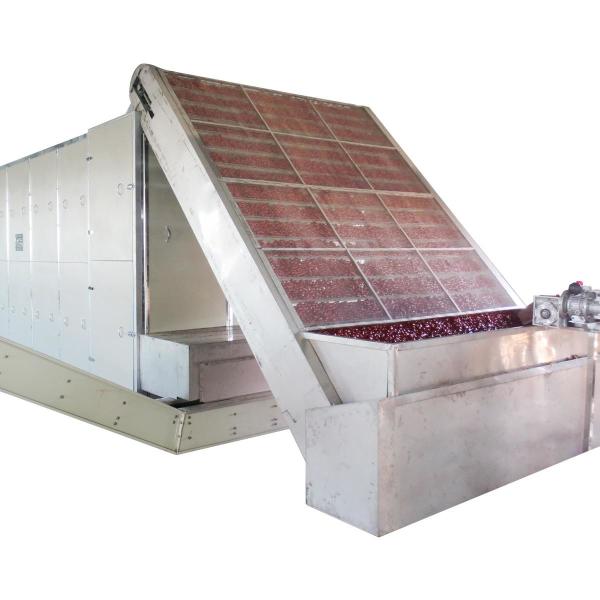

High Density Seamless Skeleton Temperature Control Function Fruit Belt Drying Equipment

Quick Detail:

  • Overall drying solution
  • Precise process improvement technology
  • Professional customization of technological innovation

Description:

  1. Through heat conduction, convection, and radiation heat transfer, the heat is fully utilized, and the air is recycled to save energy.

  2. Fruit Belt Drying Equipment Made of high-quality stainless steel, compact structure, smooth operation, strong and durable

  3. Fruit Belt Drying Equipment can meet the drying and large-scale continuous production of vegetable materials such as roots, stems, leaves, strips, blocks, flakes, and large granules, and at the same time, it can retain the nutrients and color of the products.

SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton

COMPANY PROFILE

SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton

PATENT CERTIFICATE

SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

SGS ODM Fruit Belt Drying Equipment In Food Industry High Density Seamless Skeleton
