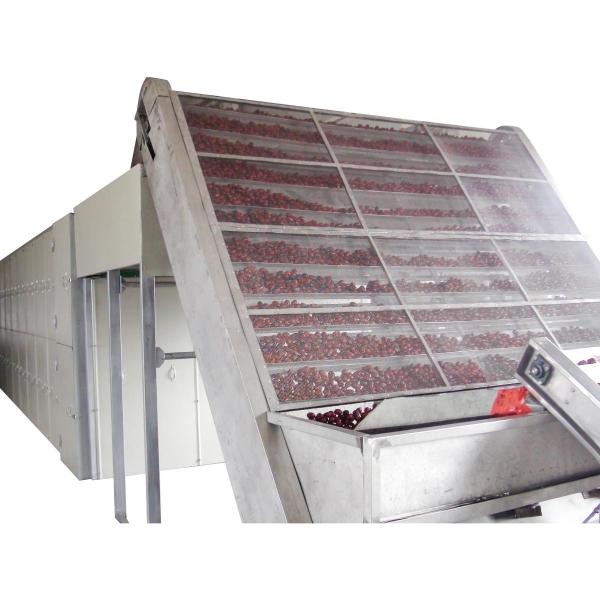

Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
Specifications
Brand Name :
HengShou
Model Number :
HSKJ-02
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Continuous Belt Dryer Machine
structure type :
Multilayer mesh belt
Applicable Industries :
Manufacturing Plant；Farms
Power :
10-40KW
Heat Source :
Electricity, Air Energy
Transfer Method :
Chain Drive
Description

Single Layer Multi Layer Air Energy Heat Source Continuous Belt Dryer Machine

Quick Detail:

  • Automatic operation, saving labor and labor
  • Continuous production, large output
  • Precise temperature control, high drying quality
  • High-quality materials, safe and hygienic

Description:

  1. The inside and outside of the oven are made of 304 stainless steel, which has the advantages of moisture resistance, corrosion resistance, and no rust.

  2. The oven adopts a two-way door, which is convenient for inspection, and disassembly of parts, easy to open, and easy to clean.

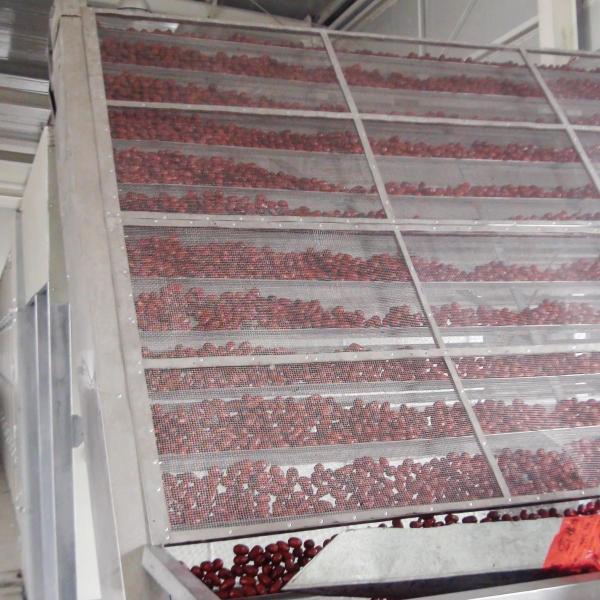

  3. The baked goods are turned over and flipped on the upper layer and naturally fall to the lower layer, so that the baked goods are evenly heated, which overcomes the deformation of the goods caused by manual stirring and saves manpower.

Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW

COMPANY PROFILE

Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW

PATENT CERTIFICATE

Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Air Energy Heat Source Continuous Belt Dryers Single Layer Multi Layer 10 To 40KW
