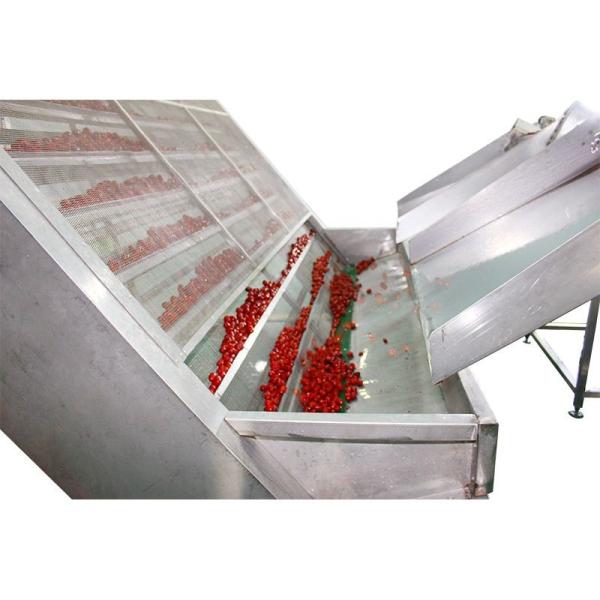

0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Candied Dates Red Dates Belt Drying Equipment
Bandwidth meters :
1.2-2
Number of layers (n) :
1-4
Operating temperature :
50-80℃
Drying output (t/h) :
6-20
Steam pressure :
0.2-0.5mPa
Description

Steam Air Recycling Candied Dates Red Dates Belt Drying Equipment Special Structure

Description:

Candied Dates Red Dates Belt Drying Equipment is continuous drying equipment for batch production. It is used for drying sheets, strips, and granular materials with good air permeability. For dehydrated vegetables, catalysts, Chinese medicine pieces, etc. It is especially suitable for materials whose material temperature is not allowed to be high; this series of dryers have the advantages of fast drying speed, high evaporation intensity, and good product quality. Can be dried.

Candied Dates Red Dates Belt Drying Equipment is suitable for the large-scale production of difficult-to-dry materials with a low drying rate. The equipment has a compact structure, a small footprint, simple operation, convenient maintenance, and stable operation. It can be designed into different hot air circulation drying forms according to the drying characteristics of materials. It is an extension and improvement of hot air circulation ovens and is widely used in metallurgical additives, chemicals, food, packaging, and other fields. With the advancement of enterprise technology and the improvement of product technical content, the multi-layer belt dryer has the ability to meet the needs of large-scale production, diversification, centralized control, and continuous production. It has the advantages of high efficiency, energy saving, and easy management.

0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit

COMPANY PROFILE

0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit

PATENT CERTIFICATE

0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

0.2 To 0.5mPa Steam Air Recycling Red Dates Mesh Belt Dryer Machine For Fruit
