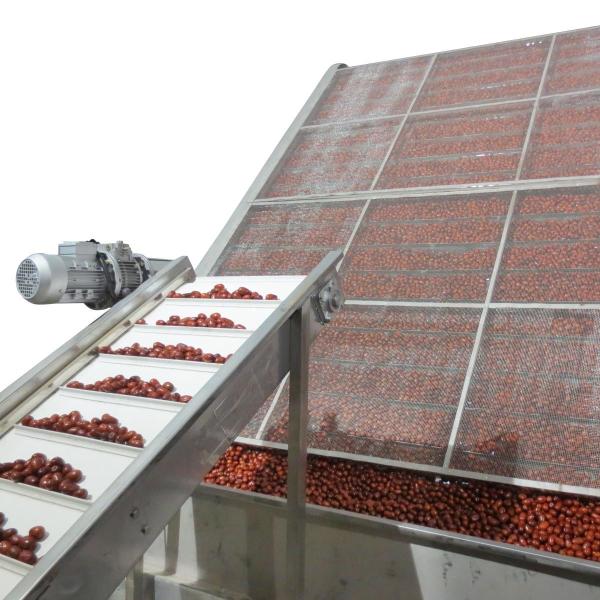

Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Jujube Belt Drying Equipment
Structural form :
multilayer belt
Applicable materials :
variety available
Custom processing :
Yes
Heating method :
Coal heating
Temperature :
0-75 degrees
Description

Uniform Hot Air Dehydration Customized Jujube Working Belt Drying Equipment

Quick Detail:

  • Own patented host
  • Space saving
  • Professional maintenance team
  • Various interfaces
  • Freely customized according to working conditions

Description:

  1. Air volume, heating temperature, material residence time, and feeding speed can be adjusted to achieve a good drying effect

  2. Jujube Belt Drying Equipment Through heat conduction, convection and radiation heat transfer, the heat is fully utilized, and the air is recycled to save energy.

  3. Jujube Belt Drying Equipment Made of high-quality stainless steel, compact structure, smooth operation, strong and durable

Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving

COMPANY PROFILE

Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving

PATENT CERTIFICATE

Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Uniform Hot Air Dehydration Jujube Belt Dryer Machine ODM Space Saving
