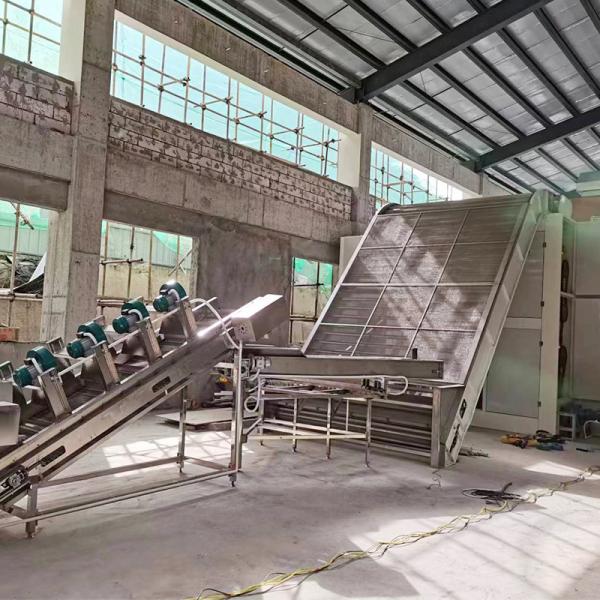

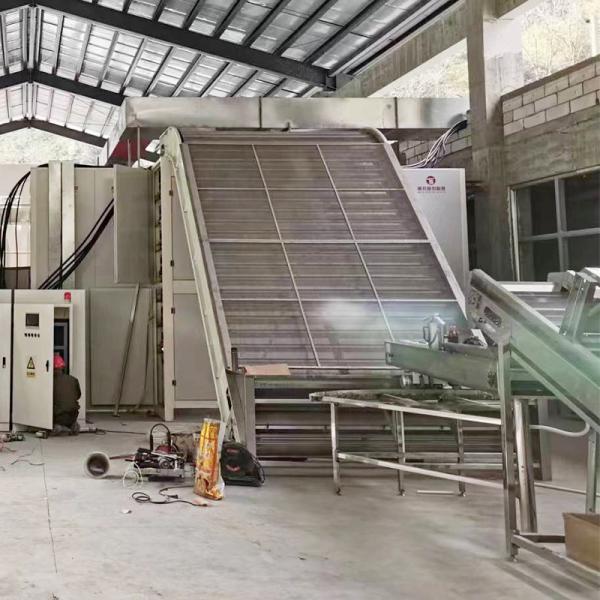

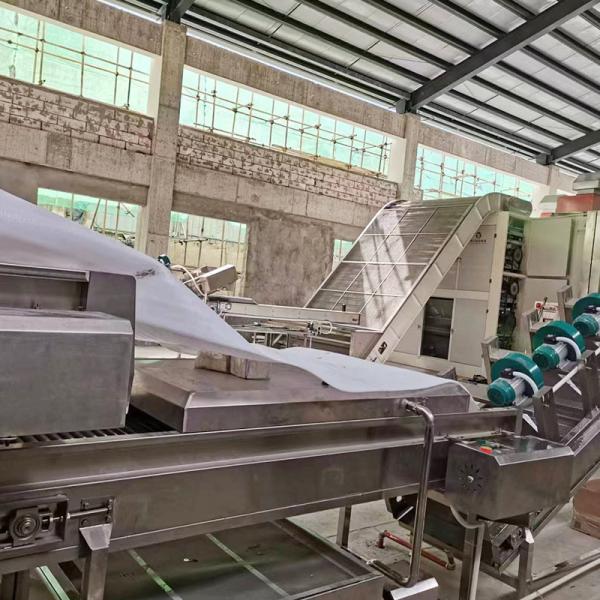

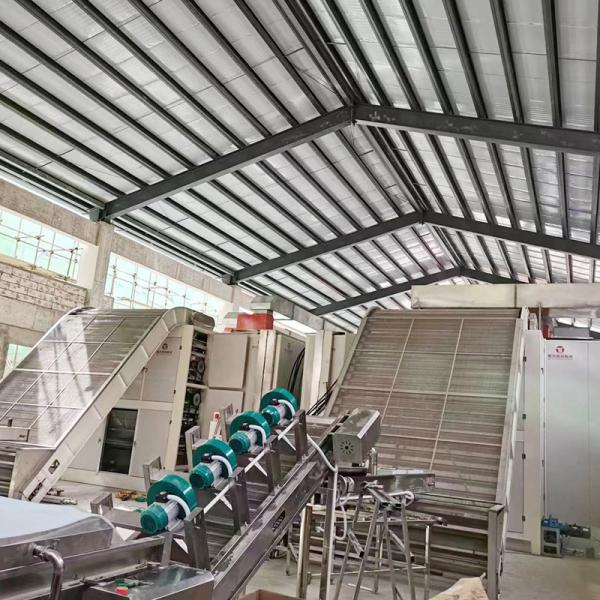

Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
Specifications
Brand Name :
ShouKe
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Continuous Belt Drying Equipment
Product Features :
Dehydration
Field of application :
chemical industry
Structural form multilayer tape :
multilayer tape
Weight :
1200kg
Drying time :
0.4-1.2h
Description

Full Automatic Multi Layer Mesh Belt Type Drying Machine For Vegetable In Factory

Description:

High heat energy conversion rate: The heat exchange device independently developed by Guoxin can be matched with various heat sources, and the heat energy conversion rate is up to 95%.
Clean and sanitary: the whole drying process is completed in a closed box, which will not be polluted by the outside world.
Long equipment life: dryer overall running speed is very slow, almost no wearing parts

Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
The thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation, capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable

COMPANY PROFILE

Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable

PATENT CERTIFICATE

Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Full Automatic Multi Layer Mesh Belt Drying Machine For Vegetable
