Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Large Scale Drying Mesh Belt Machine With Intelligent Control System
Specifications
Brand Name :
ShouKe
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Continuous Belt Drying Equipment
Power :
7.5kw
Field of application :
chemical industry
Structural form multilayer tape :
multilayer tape
Weight :
1200kg
Drying time :
0.4-1.2h
Description

Large Scale Drying Mesh Belt Machine With Intelligent Control System

Description:

The use of an intelligent control system can ensure the temperature, duration, air volume, and other parameters controlled in the drying process.
Cost saving: the whole set of equipment can be completed by only one person, and the drying time is shortened, thus saving labor and time cost.

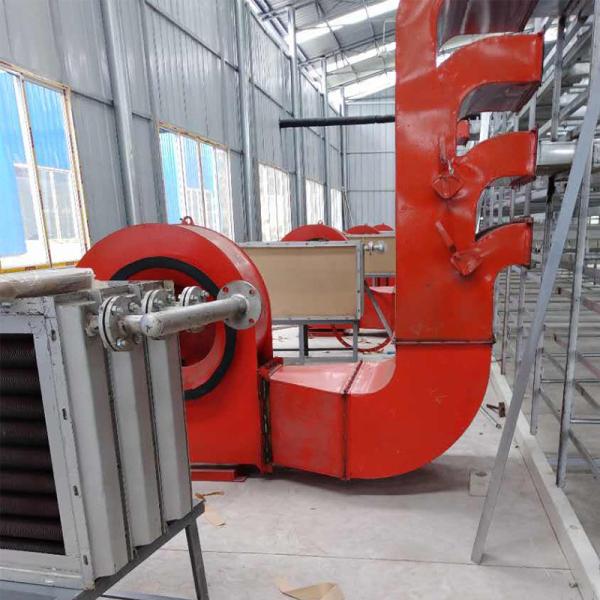

High heat energy conversion rate: The heat exchange device independently developed can be matched with various heat sources, and the heat energy conversion rate is up to 95%.

Large Scale Drying Mesh Belt Machine With Intelligent Control System

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
The thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation, capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Large Scale Drying Mesh Belt Machine With Intelligent Control System

COMPANY PROFILE

Large Scale Drying Mesh Belt Machine With Intelligent Control System

PATENT CERTIFICATE

Large Scale Drying Mesh Belt Machine With Intelligent Control System

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Large Scale Drying Mesh Belt Machine With Intelligent Control System
