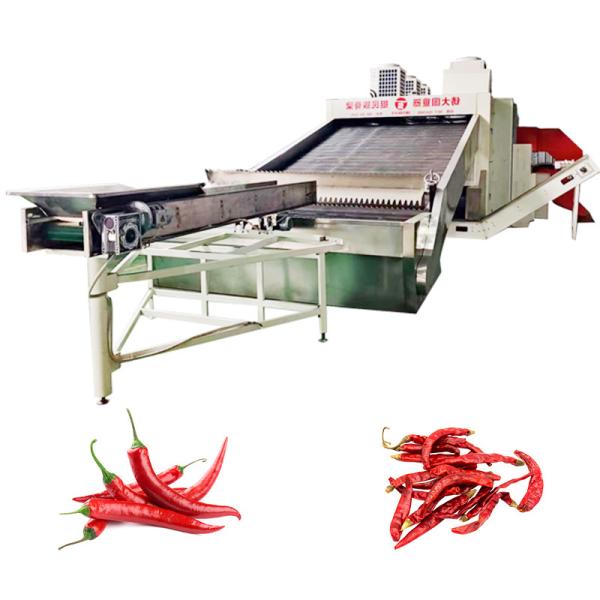

Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
Specifications
Brand Name :
ShouKe
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Medicinal Material Belt Dryer Equipment
Product Features :
Dehydration
Field of application :
chemical industry
Structural form multilayer tape :
multilayer tape
Weight :
1600kg
Rotational speed :
Continuously variable speed (r/min)
Description

Dried meat vegetables fruit dehydration machine drying equipment machine

Description:

Mesh belt dryer is a new type of environment-friendly dehydration equipment, universal, can achieve continuous production, with fast drying speed, processing output, low energy consumption, pollution-free, and good material quality characteristics.

Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
The thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation, capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape

COMPANY PROFILE

Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape

PATENT CERTIFICATE

Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Dried Meat Vegetables Fruit Dehydration Machine Multilayer Tape
