Water Cooled Dry Vacuum Pump 1200m³/h ≤0.5Pa GRH1202
Water Cooled Dry Vacuum Pump 1200m³/h ≤0.5Pa GRH1202
Specifications
Brand Name :
BSC
Model Number :
GRH1202
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
1
Payment Terms :
T/T
Supply Ability :
500 Units per month
Delivery Time :
7 working days
Packaging Details :
Wooden Box
Cooling method :
water cooled
Pumping speed :
1200m³/h
Ultimatre Pressure :
≤0.5Pa
Power(kW) :
7.5+1.9
Rated Voltage :
380V
Description

BAOSI VACUUM DRY VACUUM PUMP GRH1202 Water-cooled,pumping speed 1200m³/h, 380V

Key advantages:

  • Oil free vacuum – Critical for contamination-sensitive processes
  • High reliability – Suitable for continuous industrial operation
  • Handles condensable gases – Ideal for processes with steam/vapors
  • Low maintenance – Cost-effective for long-term use

Technical Parameter

Model Unit GRH1202
Pumping speed m³/h 1200
Ultimate pressure Pa ≤0.5
Rated Power kW 7.5+1.9
Rated Voltage V 380
Cooling Water Pressure MPa 0.1-0.6
Flow L/min ≥4.7
Temp. ℃ 5~30
Connector - G3/8
N2 Purge Pressure MPa 0.2~0.6
Flow L/min 4~96
Connector - G1/4
Inlet - ISO100
Outlet - KF40
Noise dB ≤70
Working Temp. ℃ 5~40
Weight kgs 220

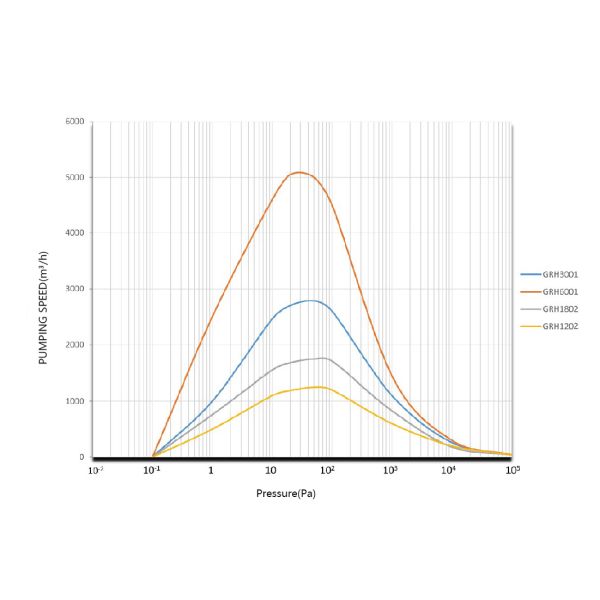

Pumping Curve

Water Cooled Dry Vacuum Pump 1200m³/h ≤0.5Pa GRH1202

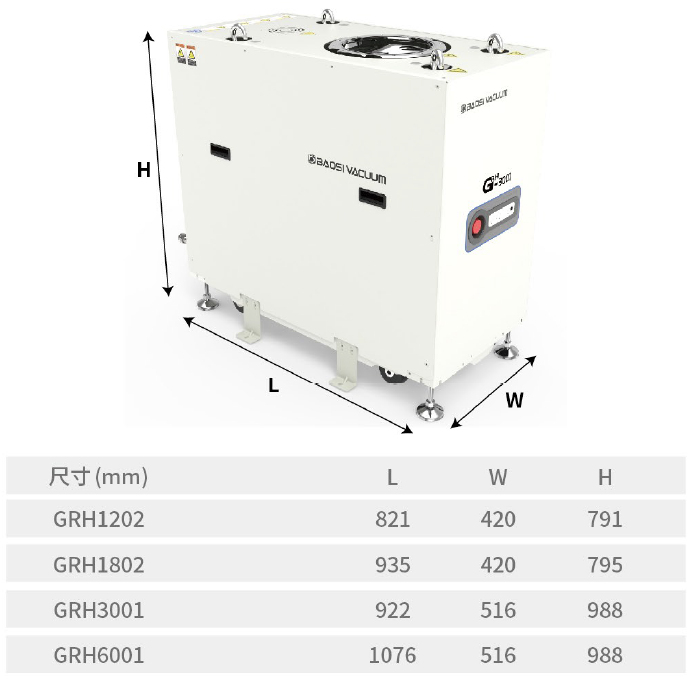

OUTLINE DIMENSIONAL DRAWING

Water Cooled Dry Vacuum Pump 1200m³/h ≤0.5Pa GRH1202
This dry pump is a core vacuum equipment with high pumping speed, wide pressure range, and stable performance, and is widely used in the following key industries:

Key Application Industries

  • Pharmaceuticals (Pharma)
  • Chemical & Petrochemical (Chem/Petrochem)
  • Electronics & Semiconductor (Elec/Semi) – Vacuum coating, ion etching, HDD manufacturing, plasma cleaning
  • Food & Beverage (F&B) – Freeze-drying, dehydration, vacuum packaging, dairy processing
  • Aerospace & Aviation (Aero) – Brazing, vacuum heat treatment, environmental simulation
  • Metallurgy & Foundry (Met/Foundry) – Vacuum melting, sintering, degassing, and titanium melting
  • Medical & Healthcare (Med/Health) – Steam sterilization, hospital negative pressure systems, medical device manufacturing
  • Plastics & Rubber (Plastics/Rubber) – Extrusion, thermoforming, degassing
  • Printing & Paper (Print/Paper) – Paper converting, vacuum feeding
  • Environmental & Wastewater (Env/WW) – Sewage handling, gas stripping, VOC recovery
  • Research & Lab (R&D/Lab) – Rotary evaporation, distillation, vacuum drying, pilot plants
