Water Cooled Dry Vacuum Pump 200m³/h,≤0.5Pa,1.9kw,GRM201
Water Cooled Dry Vacuum Pump 200m³/h,≤0.5Pa,1.9kw,GRM201
Specifications
Pumping speed :
200 m³/h
Brand Name :
BSC
Model Number :
GRM201
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
1
Supply Ability :
500 Units per month
Delivery Time :
7 working days
Packaging Details :
Wooden Box
Ultimatre Pressure :
≤0.5 Pa
Cooling method :
water cooled
Rated Power :
1.9
Rated Voltage :
380V
Payment Terms :
T/T
Description

Baosi water-cooled Dry Vacuum Pump GRM201, 200m³/h,≤0.5Pa,1.9kw

Specifications

  • Low power consumption,
  • High pumping speed,
  • Strong dust removal capacity,
  • The ability to transport easily condensable process gases.

The stable pumping speed makes it suitable for processes with large exhaust volumes, offering high reliability and low operating and maintenance costs. It is suitable for clean, moderate, and demanding processes such as PECVD, MOCVD, and SiC-CVD in industries like photovoltaics and semiconductors.

Product Features

  • Utilizes a permanent magnet synchronous motor for lower energy consumption.
  • Advanced rotor structure enhances the pump's dust removal capacity.
  • Insensitive to dust and water vapor in the pumped gas;
  • Compact structure, small overall size, and high system efficiency;
  • Comprehensive protection functions and strong self-adaptability;
  • Low vibration and noise during operation; an advanced lip seal and labyrinth seal system, combined with nitrogen purging, effectively ensures an oil-free pump chamber, improving the vacuum cleanliness of the process chamber.
  • Remote control and monitoring functions are possible via the I/O interface and RS-485 interface (Moudbus protocol).

TECHNICAL PARAMETER

Model Unit GRM201
Pumping speed m³/h 200
Ultimate pressure Pa ≤0.5
Rated Power kW 1.9
Rated Voltage V 380
Cooling Water Pressure MPa 0.1-0.6
Flow L/min ≥3
Temp. ℃ 5~30
Connector - G3/8
N2 Purge Pressure MPa 0.2~0.6
Flow L/min 12~50
Connector - G1/4
Inlet - ISO63
Outlet - KF25
Noise dB ≤63
Working Temp. ℃ 5~40
Weight kgs 150

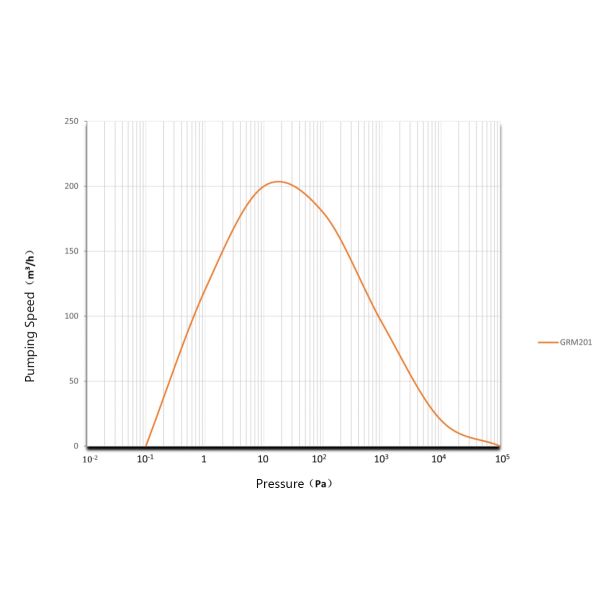

Pumping Curve

Water Cooled Dry Vacuum Pump 200m³/h,≤0.5Pa,1.9kw,GRM201

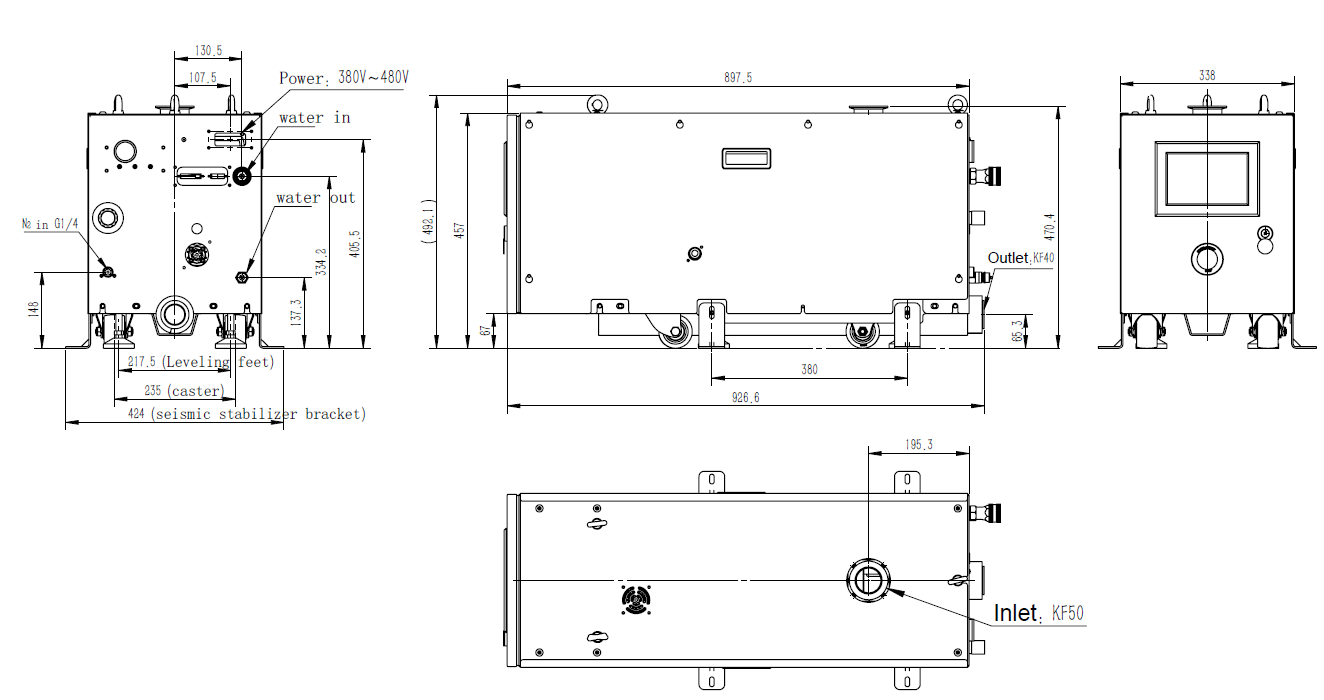

Drawing

Water Cooled Dry Vacuum Pump 200m³/h,≤0.5Pa,1.9kw,GRM201

Applications :

It is suitable for clean, moderate, and demanding processes such as PECVD, MOCVD, and SiC-CVD in industries like photovoltaics and semiconductors.
