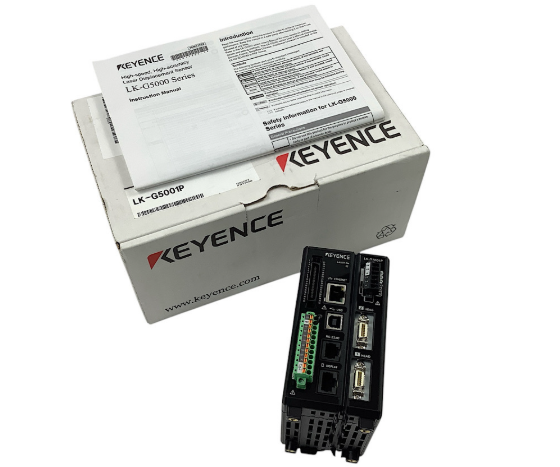

Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)
Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)
Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)
Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)
Specifications
Model Number :
LK-G5001P
Indicator :
Power indicator
Supply Ability :
100PC
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Product No :
BSW000R
Brand Name :
KEYENCE
Measuring Range :
150 mm
Price :
negotiate
Temperature Range :
-25°C To +60°C
Payment Terms :
T/T,Alipay,Paypal,XT
Line Voltage :
200 to 600 Volts AC
Place of Origin :
China
Operating Temperature :
-25°C to +60°C
MOQ :
1
Head Mount :
DIN form B head mount
Description

Keyence LK-G5001High‑Speed Laser Displacement Controller


Manufacturer :KEYENCE
Product No. : LK-G5001P

Parameter Item Specification Data
Full Model LK‑G5001P
Product Category Separate‑type main controller, PNP open‑collector output version
Maximum Connectable Sensor Heads 2 units
Minimum Display Resolution 0.001 µm
Adjustable Measuring‑Display Range ±999.999 µm to ±9999.99 mm, 7 optional settings
Display Refresh Cycle Approx. 10 Hz
Power‑supply Requirement 24 VDC ±10%
Max Working Current ≤0.6 A (1 connected sensor head); ≤3.5 A (12 connected sensor heads)
Net Weight Approx. 600 g
Working Ambient Humidity 35%‑85% RH, non‑condensing


Function Module Detailed Specifications
Serial Port RS‑232C Baud‑rate 9600‑115200 bps; 8‑bit data length, 1 stop‑bit; optional none/even/odd parity
USB Interface USB 2.0 High‑Speed compliant
Ethernet Port 10 Base‑T / 100 Base‑TX
EtherNet/IP Interface Cyclic implicit messaging, explicit message communication, 32‑channel connection capacity, CT14 conformance‑test certified
Analog Output 2‑channel output; ±10 V voltage output (100 Ω output impedance), 4‑20 mA current output (max 350 Ω load resistance)
External Control Terminals Timing input, reset input, auto‑zero input, laser‑switch control, PNP‑type alarm output and comparator output
Compatible Expansion Units LK‑CC100 CC‑Link module, LK‑DN100 DeviceNet module


Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)


Brand


Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)

Below are the TOP BRANDS we handle in the past 14 years:

Keyence LK-G5001P Separate‑Type Main Controller (PNP Output)


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
