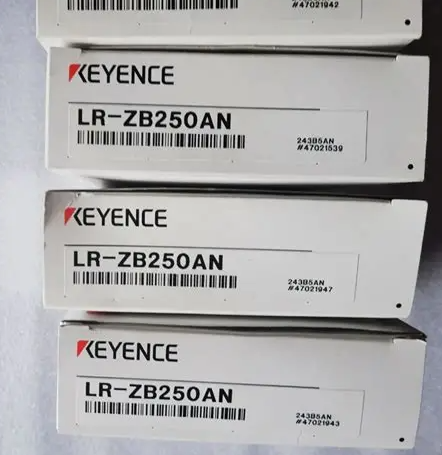

Keyence LR-ZB250AN CMOS Laser Distance Sensor
Keyence LR-ZB250AN CMOS Laser Distance Sensor
Keyence LR-ZB250AN CMOS Laser Distance Sensor
Keyence LR-ZB250AN CMOS Laser Distance Sensor
Specifications
Model Number :
LR-ZB250AN
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Indicator :
Power indicator
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
MOQ :
1
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
Line Voltage :
200 to 600 Volts AC
Description

Keyence LR-ZB250AN CMOS Laser Distance Sensor


Manufacturer :KEYENCE
Product No. : LR-ZB250AN

Parameter Item Technical Data
Full Model Number LR‑ZB250AN
Manufacturer Keyence
Sensor Category Built‑in‑amplifier CMOS reflective laser sensor
Detecting Distance Range 35 mm‑250 mm
Light Source 660 nm red‑light laser, Class‑1 laser safety grade
Control Output Mode NPN open‑collector
Cable Spec Integrated 2‑metre fixed‑length cable
Power Supply 10‑30 VDC
Max Power Consumption ≤450 mW
Switching Response Speed 1.5 ms /10 ms /50 ms switch‑selectable
Laser Spot Size (250 mm) Approx 2.4 mm ×1.2 mm
Output Function Light‑ON / Dark‑ON switchable


Parameter Item Technical Data
Protection Grade IP68, IP69K, NEMA 4X /6P /13
Main Housing Material SUS316L stainless‑steel shell
Operating Ambient Temperature -10 ℃ ~ +50 ℃ (no icing)
Storage Temperature -25 ℃ ~ +75 ℃
Working Humidity 35%‑85% RH, non‑condensing
Shock Resistance 1000 m/s², 6 shocks for X/Y/Z‑axis
Vibration Resistance 10‑55 Hz, 1.5 mm double‑amplitude, 2‑hour test on three axes
Built‑in Indicator 3‑digit 7‑segment red display, yellow output indicator, orange DATUM lamp, green alignment spot lamp
External Input Feature External tuning and laser‑emission stop control


Keyence LR-ZB250AN CMOS Laser Distance Sensor

Brand


Keyence LR-ZB250AN CMOS Laser Distance Sensor


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence LR-ZB250AN CMOS Laser Distance Sensor




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence LR-ZB250AN CMOS Laser Distance Sensor

Below are the TOP BRANDS we handle in the past 14 years:

Keyence LR-ZB250AN CMOS Laser Distance Sensor


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
