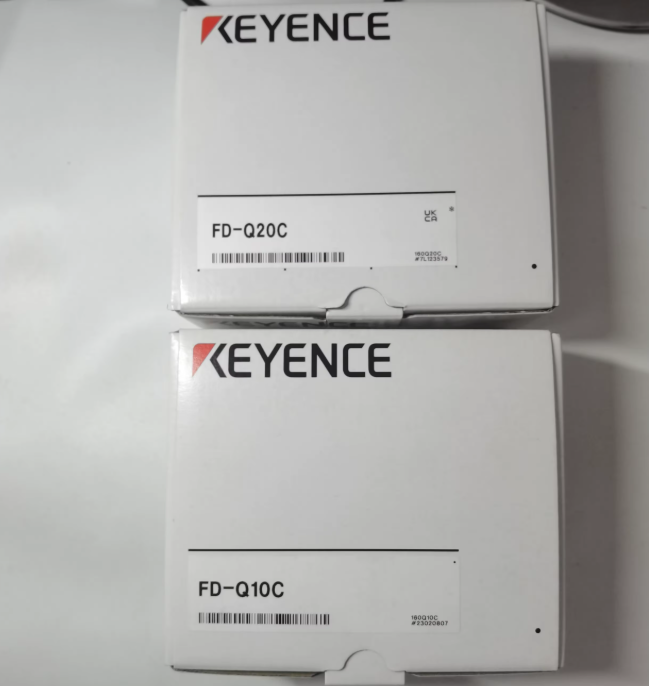

Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor
Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor
Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor
Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor
Specifications
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Model Number :
FD-Q20C
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Line Voltage :
200 to 600 Volts AC
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Place of Origin :
China
MOQ :
1
Indicator :
Power indicator
Brand Name :
KEYENCE
Description

Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor


Manufacturer :KEYENCE
Product No. : FD-Q20C

Parameter Item Detailed Parameter Value
SKU Model FD‑Q20C
Applicable Pipe Size 1/2"(15A): Ø18‑23 mm; 3/4"(20A): Ø23‑28 mm
Acceptable Pipe Material Metal pipe, resin plastic pipe
Measurable Liquid Media Deionized‑water, tap‑water, machine oil, solvent and industrial chemical liquids
Fluid Working Temperature 0 °C ~ 85 °C (pipe‑surface freezing prohibited)
Rated Maximum Flow 15‑A pipeline:60 L/min; 20‑A pipeline:100 L/min
Zero‑Cut‑Off Flow Rate 2.5 L/min (factory default, adjustable)
Power‑Supply Requirement 20‑30 VDC, maximum 10% peak‑to‑peak ripple, Class‑2 power supply
Working Current ≤130 mA (excluding external load current)


Performance Index Technical Data
Ingress Protection Grade IP65 / IP67 (IEC60529 industrial waterproof standard)
Ambient Operating Temperature -10 °C ~ +60 °C, no frost‑condensation
Allowed Humidity Range 35%‑85% RH, non‑condensing
Vibration Resistance 10‑55 Hz, 1.5‑mm double‑amplitude, 2‑hour X/Y/Z‑axis test
Shock Resistance 100 m/s², 16‑millisecond pulse, 1000 shocks on three axes
Measurement Repeatability ±0.15% full‑scale (60‑second response setting)
Display Hardware Dual‑row 4‑digit seven‑segment LED, stability‑status indicator lamp
Display Refresh Rate 3 Hz
Communication Protocol IO‑Link compatible


Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor

Brand


Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor

Below are the TOP BRANDS we handle in the past 14 years:

Keyence FD-Q20C Clamp‑On Ultrasonic Liquid Flow Sensor


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
