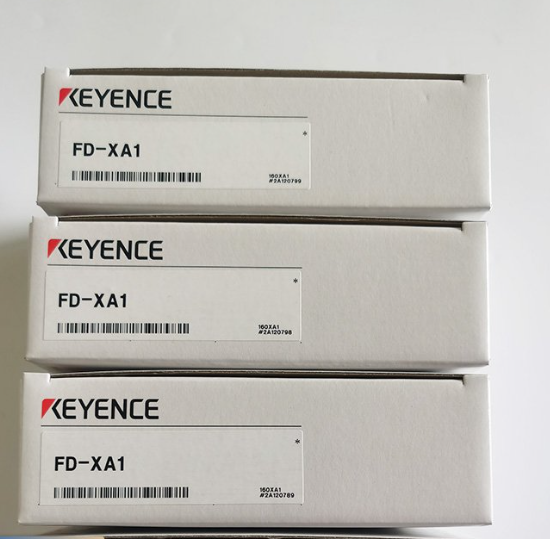

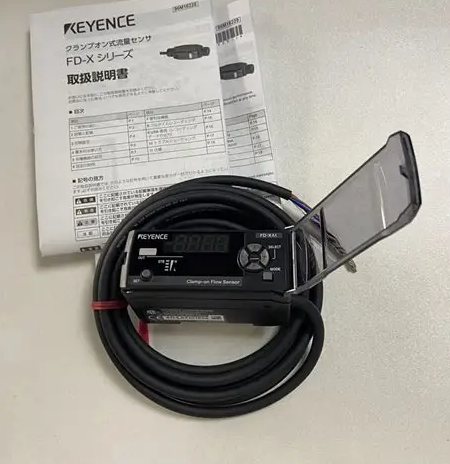

Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit
Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit
Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit
Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit
Specifications
Model Number :
FD-XA1
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Indicator :
Power indicator
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Line Voltage :
200 to 600 Volts AC
Description

Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit


Manufacturer :KEYENCE
Product No. : FD-XA1

Specification Item FD‑XA1 Parameter Details
Device Model FD‑XA1
Installation Form Standard DIN rail mounting
Supply Voltage 20‑30 VDC, 10 % peak‑to‑peak ripple permitted, Class‑2 power supply
Max Working Current ≤195 mA (sensor‑head power included, load‑side current excluded)
Expansion Capacity One main unit can connect a maximum of 7 expansion units
Digital Output Mode Switchable NPN / PNP open‑collector output; Max 50 mA per channel on main unit, 20 mA per channel on expansion modules, residual output voltage ≤2 V
Analogue Output Dual‑option 4‑20 mA / 0‑20 mA, maximum load resistance 500 Ω
Multifunction External Input Zero‑flow reset, sampling trigger, accumulated‑flow reset, zero‑offset input (function‑switchable); Short‑circuit current ≤1 mA (NPN) / ≤2 mA (PNP), minimum trigger duration 20 ms
Industrial Protocol Built‑in IO‑Link interface
Built‑in Protection Circuit Reverse‑power‑supply protection, surge‑voltage defence, output short‑circuit and surge‑protection circuits


Performance Parameter Technical Data
Main‑housing Material Polycarbonate; Button component: POM; Connecting cable jacket: PVC
Net Weight Approx. 210 g
Operating Temperature Range ‑10 ℃ ~ +50 ℃, operation without internal freezing
Working Humidity 35 %‑85 % RH, non‑condensing environment
Vibration Resistance 10–55 Hz, 1.5‑mm peak‑to‑peak amplitude, two‑hour endurance testing along X, Y and Z axes
Shock‑Resistance Rating 100 m/s² (10 G), 16‑millisecond pulse, 1000 impacts on three orthogonal axes
