Specifications
Model Number :
KV-C64XC
Indicator :
Power indicator
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

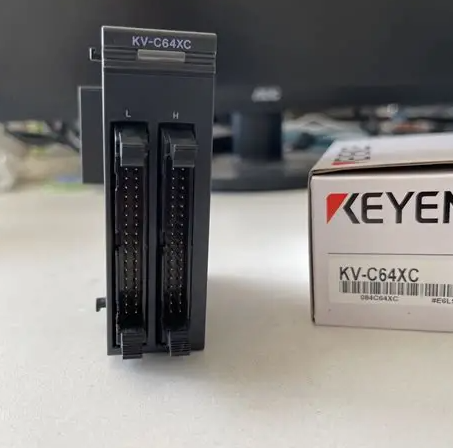

Keyence KV-C64XC 64-Point DC Input Module


Manufacturer :KEYENCE
Product No. : KV-C64XC

Parameter Specification
Model Number KV-C64XC
Brand Keyence
Series KV-8000 Modular PLC System
Module Type Digital Input Expansion Module
Input Quantity 64 Points
Input Type Sink Input, 24 VDC Mode
Rated Input Voltage 24 VDC, 4.1 mA per channel
Maximum Allowable Voltage 26.4 VDC
Minimum ON Voltage 19 VDC
Maximum OFF Leakage Current 1.5 mA
Input Impedance 5.6 kΩ
Input Time Constant Options 25 µs / 300 µs / 1 ms / 10 ms
Common Group Layout 32 Points / 1 Common Terminal (2 groups)
Internal Current Consumption ≤ 25 mA
External Connection MIL Standard Connector


Parameter Specification
Mounting Method Standard 35 mm DIN Rail
Operating Ambient Temperature 0 °C ~ +55 °C
Storage Temperature Range -20 °C ~ +70 °C
Operating Humidity 10% ~ 90% RH, non-condensing
Protection Class IP20 (for indoor control cabinet installation)
Net Weight Approx. 140 g
Status Indicator Channel operation LED indicators
Vibration Resistance IEC 60068-2-6 compliant
Shock Resistance IEC 60068-2-27 compliant
Compatible Controller KV-8000 Series CPU Units
Compliance Certifications CE, UL, RoHS


Keyence KV-C64XC 64-Point DC Input Module


Brand


Keyence KV-C64XC 64-Point DC Input Module


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence KV-C64XC 64-Point DC Input Module




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence KV-C64XC 64-Point DC Input Module

Below are the TOP BRANDS we handle in the past 14 years:

Keyence KV-C64XC 64-Point DC Input Module


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
