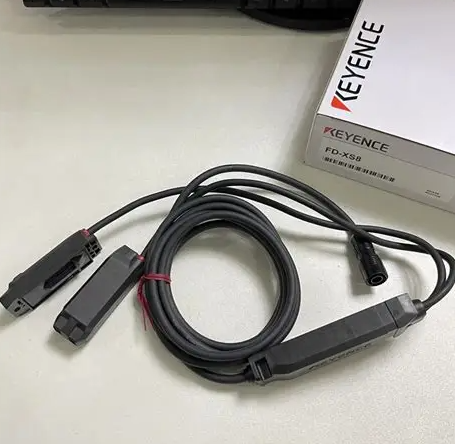

Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head
Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head
Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head
Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head
Specifications
Model Number :
FD-XS8
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Indicator :
Power indicator
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head


Manufacturer :KEYENCE
Product No. : FD-XS8

Specification Item FD‑XS8 Parameter Details
Sensor Head Model FD‑XS8
Sensing Principle Thermal mass non‑contact clamp‑on detection
Applicable Pipe Outer Diameter Ø6 (1/4‑inch 6.35 mm), Ø8 mm pipelines
Max Rated Flow Range 0‑3000 mL/min (Ø6 pipe); 0‑8000 mL/min (Ø8 pipe)
Instantaneous‑Flow Measurement Error (50 ms response) ±9 mL/min (Ø6 pipe); ±12 mL/min (Ø8 pipe)
Instantaneous‑Flow Measurement Error (500 ms response) ±2.9 mL/min (Ø6 pipe); ±3.8 mL/min (Ø8 pipe)
Fluid Medium Water, machine‑oil, adhesive, lubricant, chemical liquid and other common industrial liquids
Pipe Surface Fluid Temperature Range 0 °C (freezing‑free) ~ 100 °C
Response Time Options 50 ms, 100 ms, 500 ms, 1 s, 2.5 s, 5 s, 10 s, 30 s, 60 s (configurable on controller)
Hysteresis Characteristic Adjustable variable hysteresis
Matching Clamp Accessories FD‑XC8R1/R2/R3 (plastic pipes), FD‑XC8M (metal pipes)


Performance Parameter Technical Specification
Enclosure Protection Rating IP65, IP67 (IEC60529), IP68G (JIS C0920)
Sensor‑Head Housing Material PPS / PPSU high‑performance engineering plastic
Integrated Cable Jacket Material PVC
Clamp‑Part Material Plastic‑pipe fixture: PPS, FKM fluororubber, SUSXM7 stainless‑steel screws; Metal‑pipe fixture: SUS304 stainless‑steel main‑body
Net Weight 135 g
Operating Ambient Temperature ‑10 ℃ ~ +60 ℃, no surface ice formation
Permitted Working Humidity 35 %‑85 % RH, non‑condensing environment
Vibration Endurance 10–55 Hz, 1.5‑mm peak‑to‑peak amplitude, two‑hour test for X, Y, Z three axes
Shock‑Resistance Standard 50‑G, 11‑millisecond pulse, three‑time impact inspection on every orthogonal axis


Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head


Brand


Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head

Below are the TOP BRANDS we handle in the past 14 years:

Keyence FD-XS8 Clamp‑On Liquid Micro‑Flow Sensor Head


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
