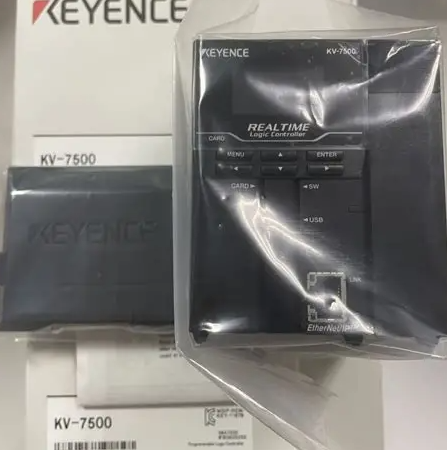

KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP
KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP
KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP
KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP
KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP
KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP
Specifications
Model Number :
KV-7500
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Indicator :
Power indicator
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP


Manufacturer :KEYENCE
Product No. : KV-7500

Parameter Specification
Model Number KV-7500
Brand Keyence
Series KV-7000 Realtime Logic Controller
Product Type PLC CPU Unit
Execution Speed (Basic Instruction) Min. 0.96 ns
Program Capacity Approx. 1,500k steps
CPU Internal Memory 64 MB
Programming Languages Expanded Ladder, KV Script, Mnemonic
Built-in Network Ports EtherNet/IP + Dual Ethernet (RJ45)
Ethernet Speed 10 / 100 / 1000 BASE-T
Maximum Connectable Expansion Units 16 units (KV-7000 only) / 48 units (mixed series)
Internal Device Resources CR:1280 points; T/C:4000 points; DM/EM:65535 words
Control Mode Stored program, cyclic I/O refresh
Diagnosis Function Built-in system self-diagnosis, error logging


Parameter Specification
Supply Voltage 24 VDC

• Only KV-7000 modules: -15% ~ +20%

• Mixed with KV-5000/3000: ±10%
Operating Temperature

• Mixed system: 0 ~ +50°C

• KV-7000 only: 0 ~ +55°C		 Non-condensing
Storage Temperature -20 °C ~ +70 °C
Pollution Degree 2
Dielectric Withstand Voltage 1500 VAC, 1 minute
Insulation Resistance ≥50 MΩ (500 VDC)
Vibration Resistance 5–150 Hz, compliant with Keyence standard specifications
Shock Resistance 150 m/s², 11 ms, X/Y/Z axes, 2 times each direction
Mounting Standard 35 mm DIN rail mounting
Protection Class IP20 (for installation inside control cabinet)
Certification UL, CSA, RoHS compliant
Installation Altitude ≤ 2000 m above sea level


KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP


Brand


KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP

Below are the TOP BRANDS we handle in the past 14 years:

KEYENCE KV-7500 High-Speed PLC CPU Unit with Built-in EtherNet/IP


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
