Specifications
Model Number :
FS-N41N
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Indicator :
Power indicator
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Line Voltage :
200 to 600 Volts AC
Description

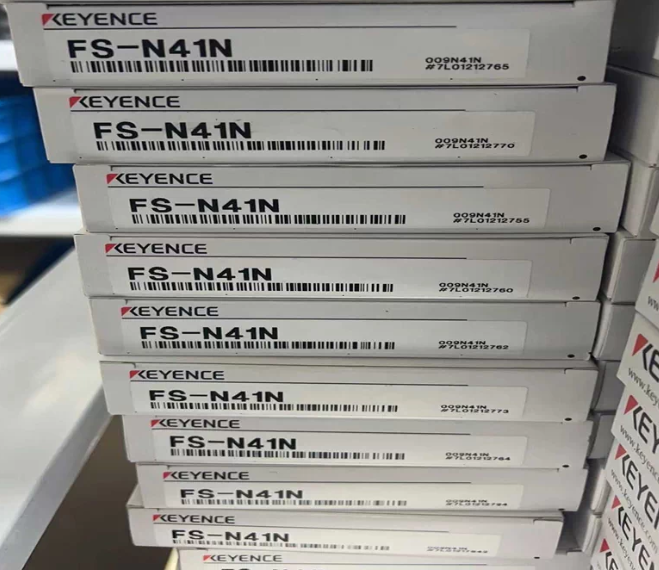

Keyence FS-N41N Digital Fiber Optic Sensor Amplifier


Manufacturer :KEYENCE
Product No. : FS-N41N

Parameter Specification
Model Number FS-N41N
Brand Keyence
Series FS-N40 Digital Fiber Optic Amplifier
Unit Type Cable Type, Main Unit
Control Output 1-channel NPN open collector
Max Output Load ≤ 100 mA (standalone)
Residual Output Voltage ≤ 1.4 V (@ ≤10 mA); ≤ 2.0 V (10~100 mA)
Light Source Red four-element LED, 660 nm
Response Time Options 23 µs / 50 µs / 250 µs / 500 µs / 1 ms / 4 ms / 16 ms / 64 ms
Supply Voltage 10 ~ 30 VDC (ripple ≤ ±10% P-P)
Power Consumption ≤ 910 mW (Normal) / ≤ 840 mW (ECO ON) / ≤750 mW (ECO FULL)
External Input Channel None
Mutual Interference Suppression Adjustable according to response speed setting
Protection Circuits Reverse power, output overcurrent, surge protection


Parameter Specification
Housing Material Polycarbonate
Mounting Method 35 mm DIN rail mounting
Ambient Operating Temperature -20 °C ~ +55 °C (non-freezing)
Storage Temperature -25 °C ~ +65 °C
Allowable Ambient Light Incandescent lamp ≤20,000 lx; Sunlight ≤30,000 lx
Vibration Resistance 10–55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis
Shock Resistance 500 m/s², 3 shocks per X/Y/Z axis
Protection Class IP40 (body, indoor cabinet installation)
Cable Type Integrated outgoing cable
Certifications CE, UL, CSA
Compliance RoHS


Keyence  FS-N41N Digital Fiber Optic Sensor Amplifier


Brand


Keyence  FS-N41N Digital Fiber Optic Sensor Amplifier


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence  FS-N41N Digital Fiber Optic Sensor Amplifier




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence  FS-N41N Digital Fiber Optic Sensor Amplifier

Below are the TOP BRANDS we handle in the past 14 years:

Keyence  FS-N41N Digital Fiber Optic Sensor Amplifier


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
