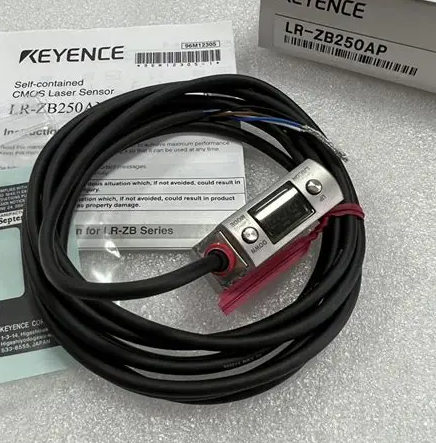

Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor
Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor
Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor
Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor
Specifications
Model Number :
LR-ZB250AP
Indicator :
Power indicator
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor


Manufacturer :KEYENCE
Product No. : LR-ZB250AP

Parameter Item Technical Data
SKU Model LR‑ZB250AP
Brand Keyence
Product Category Distance‑setting Laser Photoelectric Sensor
Housing Shape Rectangular
Connection Mode 2‑meter integrated fixed cable
Control Output PNP Open‑collector, Light‑ON / Dark‑ON switchable
Effective Detection Range 35 mm‑250 mm
Standard Detectable Step 9 mm (35‑180 mm), 25 mm (180‑250 mm)
Laser Source 660 nm red‑beam laser, Class‑1 safety laser grade
Laser Spot Size Approx. 2.4 mm × 1.2 mm (at 250‑mm detecting distance)
Selectable Response Speed 1.5 ms /10 ms /50 ms
Display Resolution 1‑3 mm adjustable


Specification Category Detailed Parameter
Operating Supply Voltage 10‑30 VDC (allow 10% peak‑to‑peak ripple)
Max Power Consumption ≤450 mW (≤18 mA under 24 VDC power supply)
Protection Rating IP68, IP69K, NEMA 4X /6P /13
Main Housing Material SUS316L Stainless‑steel casing, PES display panel
Working Ambient Temperature -10 ℃ ~ +50 ℃ (non‑freezing environment)
Storage Temperature -25 ℃ ~ +75 ℃
Operating Humidity 35%‑85% RH, no internal condensation
Anti‑Vibration Standard 10‑55 Hz, 1.5 mm double‑amplitude, 2‑hour test on X/Y/Z axis
Shock Resistance 1000 m/s² impact resistance for three‑direction testing
Ambient Light Tolerance Max 2000 lux incandescent‑lamp light; Max 4000 lux natural sunlight


Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor

Brand


Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor

Below are the TOP BRANDS we handle in the past 14 years:

Keyence LR-ZB250AP Distance‑Setting Laser Photoelectric Sensor


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
