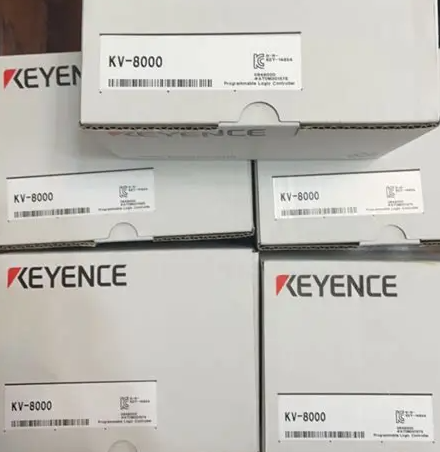

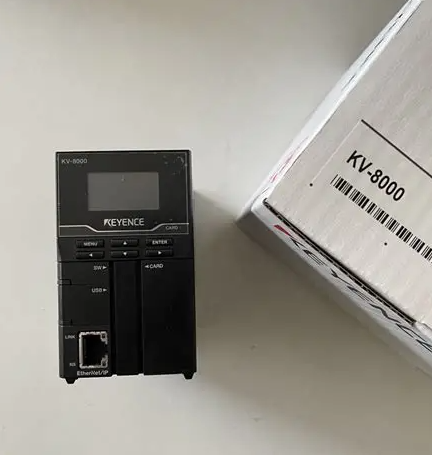

KEYENCE KV-8000 High-Speed PLC CPU Unit
KEYENCE KV-8000 High-Speed PLC CPU Unit
KEYENCE KV-8000 High-Speed PLC CPU Unit
KEYENCE KV-8000 High-Speed PLC CPU Unit
Specifications
Model Number :
KV-8000
Indicator :
Power indicator
Supply Ability :
100PC
Head Mount :
DIN form B head mount
Special Features :
Integrated TwinCAT 3 runtime environment
Packaging Details :
carton
Operating Temperature :
-25°C to +60°C
Brand Name :
KEYENCE
Price :
negotiate
Measuring Range :
150 mm
Product No :
BSW000R
Payment Terms :
T/T,Alipay,Paypal,XT
Temperature Range :
-25°C To +60°C
Place of Origin :
China
MOQ :
1
Line Voltage :
200 to 600 Volts AC
Description

KEYENCE KV-8000 High-Speed PLC CPU Unit


Manufacturer :KEYENCE
Product No. : KV-8000

Parameter Specification
Model Number KV-8000
Brand Keyence
Series KV-8000 Modular PLC Series
Product Type CPU Unit for Programmable Logic Controller
Control Method Stored program, cyclic refresh I/O mode
Basic Instruction Speed Min. 0.96 ns
Application Instruction Speed Min. 5.75 ns
Program Capacity 1500 k steps
Max Total I/O Points 3072 points
Built-In Display Multi-language LCD status screen
Onboard Communication Ports EtherNet/IP, USB 2.0 (programming)
Supported Programming Languages Expanded Ladder Diagram, KV Script, Mnemonic
Exclusive Function Machine Operation Recorder, Anomaly Monitoring
Max Number of Expansion Units 48 units (mixed series configuration)
Data Memory (DM) 65536 words


Parameter Specification
Supply Voltage 24 VDC; -15% ~ +20% (KV8000/7000 modules only)

24 VDC ±10% (mixed with KV5000/3000 modules)
Operating Temperature 0 ~ +55 °C (only KV8000/7000 expansions)

0 ~ +50 °C (mixed older series modules)
Storage Temperature -25 °C ~ +75 °C
Operating Humidity 5 ~ 95% RH, non-condensing
Dielectric Withstand Voltage 1500 VAC, 1 minute
Insulation Resistance ≥ 50 MΩ (500 VDC)
Vibration Resistance 5–150 Hz, compliant with IEC 60068-2-6
Shock Resistance 150 m/s², 11 ms, X/Y/Z 3 axes
Mounting Standard 35 mm DIN rail
Net Weight Approx. 340 g
Protection Class IP20 (for control cabinet installation)
Certifications CE, UL, CSA
Backup Option Compatible with KV-B1 lithium backup battery


KEYENCE KV-8000 High-Speed PLC CPU Unit



Brand


KEYENCE KV-8000 High-Speed PLC CPU Unit


With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development

KEYENCE KV-8000 High-Speed PLC CPU Unit




Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .

KEYENCE KV-8000 High-Speed PLC CPU Unit

Below are the TOP BRANDS we handle in the past 14 years:

KEYENCE KV-8000 High-Speed PLC CPU Unit


FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
